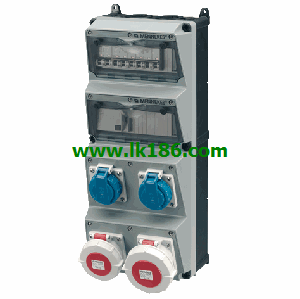

940016 Fitted with:1 CEE 32A, 5p, 400V MENNEKES 940016 AMAXX receptacle combination
Brand:
Mennekes
Name: AMAXX receptacle combination
Model: 940016
Product Name:AMAXX® receptacle combination
Part No.:940016.
Fitted with:1 CEE 32A, 5p, 400V
1 CEE 16A, 5p, 400V
2 SCHUKO® 16A, 230V.
Fusing:1 RCD 63A, 4p, 0.03A
1 MCB 32A, 3p, C
1 MCB 16A, 3p, C
2 MCB´s 16A, 1p, C.
Pre-fuse max:100A.
InA :44.8A.
RDF:0.7.
Connection/feeder cable:for 2 cable up to 5 x 25mm².
Enclosure size:520 x 225mm (H x W).
Protection type IP67.
highly resistant to chemicals made of AMELAN®.
with highly heat resistant contact carrier and nickel plated contacts.
pre-wired for installation.
enclosure front cover grey RAL 7000.
hinged to the side.
fusing behind a transparent cover.
...More relevant models >>>>
Name: AMAXX receptacle combination
Model: 940016
Product Name:AMAXX® receptacle combination
Part No.:940016.
Fitted with:1 CEE 32A, 5p, 400V
1 CEE 16A, 5p, 400V
2 SCHUKO® 16A, 230V.
Fusing:1 RCD 63A, 4p, 0.03A
1 MCB 32A, 3p, C
1 MCB 16A, 3p, C
2 MCB´s 16A, 1p, C.
Pre-fuse max:100A.
InA :44.8A.
RDF:0.7.
Connection/feeder cable:for 2 cable up to 5 x 25mm².
Enclosure size:520 x 225mm (H x W).
Protection type IP67.
highly resistant to chemicals made of AMELAN®.
with highly heat resistant contact carrier and nickel plated contacts.
pre-wired for installation.
enclosure front cover grey RAL 7000.
hinged to the side.
fusing behind a transparent cover.
Product Name:AMAXX® receptacle combination
Part No.:930038A.
Fitted with:1 CEE 32A, 5p, 400V
4 french/belg. standard 16A, 2p+E, 230V.
Fusing:1 RCD 40A, 4p, 0.03A
1 MCB 32A, 3p+N, C
1 MCB 16A, 1p+N, C
1 off button
1 indicator light.
Pre-fuse max:40A.
InA :38A MENNEKES 940016.
RDF:0 9400167.
Connection/feeder cable:for 1 cable up to 5 x 25 mm².
Enclosure size:390 x 225 mm (H x W).
Protection type IP44.
pre-wired for installation.
hinged to the side MENNEKES 940016.
enclosure and insert made of AMAPLAST.
fusing behind a transparent cover.Product Name:EverGUM receptacle combination
Part No.:70571.
Fitted with:6 french/belg. standard 16A, 2p+E, 230V.
Fusing:1 RCD 25A, 2p, 0.03A.
Connection/feeder cable:2 m H07RN-F3G2 MENNEKES 940016. 5 mit NF-plug 16A, 2p+E, 400V.
Enclosure size:445 x 135 mm (H x W).
Protection type IP44.
solid rubber enclosure, signal yellow RAL 1003 MENNEKES AMAXX receptacle combination.
pre-wired for installation.Product Name:AMAXX® receptacle combination
Part No MENNEKES AMAXX receptacle combination. :910001GE.
Fitted with:2 SCHUKO® 16A, 230V.
Fusing:1 RCD 25A, 2p, 0.03A.
2 MCB´s 16A, 1p, C.
Pre-fuse max.:25A.
InA:25A.
RDF:1.
Connection/feeder cable:for 1 cable up to 3 x 10 mm².
Enclosure size:130 x 225 mm (H x W) MENNEKES AMAXX receptacle combination.
Protection type IP44.
pre-wired for installation.
enclosure and insert made of AMAPLAST.
fusing behind a transparent cover.Product Name:AirKRAFT®
Part No.:94550SI.
Fitted with:1 CEE 16A, 5p, 400V
3 SCHUKO® 16A, 230V.
Connection/feeder cable:for 1 cable up to 5 x 10 mm² Protection type:IP44 940016.
pre-wired for installation.
back box in black.
hinged cover avaailable in red (RO), yellow (GE) or silver (SI) MENNEKES 940016.
enclosure and insert made of AMAPLAST.
fusing behind a transparent cover.
Part No.:930038A.
Fitted with:1 CEE 32A, 5p, 400V
4 french/belg. standard 16A, 2p+E, 230V.
Fusing:1 RCD 40A, 4p, 0.03A
1 MCB 32A, 3p+N, C
1 MCB 16A, 1p+N, C
1 off button
1 indicator light.
Pre-fuse max:40A.
InA :38A MENNEKES 940016.
RDF:0 9400167.
Connection/feeder cable:for 1 cable up to 5 x 25 mm².
Enclosure size:390 x 225 mm (H x W).
Protection type IP44.
pre-wired for installation.
hinged to the side MENNEKES 940016.
enclosure and insert made of AMAPLAST.
fusing behind a transparent cover.Product Name:EverGUM receptacle combination
Part No.:70571.
Fitted with:6 french/belg. standard 16A, 2p+E, 230V.
Fusing:1 RCD 25A, 2p, 0.03A.
Connection/feeder cable:2 m H07RN-F3G2 MENNEKES 940016. 5 mit NF-plug 16A, 2p+E, 400V.
Enclosure size:445 x 135 mm (H x W).
Protection type IP44.
solid rubber enclosure, signal yellow RAL 1003 MENNEKES AMAXX receptacle combination.
pre-wired for installation.Product Name:AMAXX® receptacle combination
Part No MENNEKES AMAXX receptacle combination. :910001GE.
Fitted with:2 SCHUKO® 16A, 230V.
Fusing:1 RCD 25A, 2p, 0.03A.
2 MCB´s 16A, 1p, C.
Pre-fuse max.:25A.
InA:25A.
RDF:1.
Connection/feeder cable:for 1 cable up to 3 x 10 mm².
Enclosure size:130 x 225 mm (H x W) MENNEKES AMAXX receptacle combination.
Protection type IP44.
pre-wired for installation.
enclosure and insert made of AMAPLAST.
fusing behind a transparent cover.Product Name:AirKRAFT®
Part No.:94550SI.
Fitted with:1 CEE 16A, 5p, 400V
3 SCHUKO® 16A, 230V.
Connection/feeder cable:for 1 cable up to 5 x 10 mm² Protection type:IP44 940016.
pre-wired for installation.
back box in black.
hinged cover avaailable in red (RO), yellow (GE) or silver (SI) MENNEKES 940016.
enclosure and insert made of AMAPLAST.
fusing behind a transparent cover.
