950040 MENNEKES 950040 Part No:941142
Brand:
Mennekes

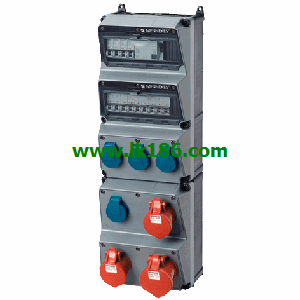

Name: AMAXXS receptacle combination
Model: 950040
Product Name:AMAXX®S receptacle combination
Part No.:950040.
Fitted with:1 CEE 32A, 5p, 400V
2 CEE 16A, 5p, 400V
4 SCHUKO® 16A, 230V.
Fusing:1 RCD 63A, 4p, 0.03A
1 MCB 32A, 3p, C
2 MCB´s 16A, 3p, C
4 MCB´s 16A, 1p, C.
Pre-fuse max:63A.
InA :53A.
RDF:0.55.
Connection/feeder cable:for 2 cable up to 5 x 25mm.
Enclosure size:650 x 225mm (H x W).
Protection type IP44.
highly resistant to chemicals made of AMELAN®.
with highly heat resistant contact carrier and nickel plated contacts.
pre-wired for installation.
enclosure front cover grey RAL 7000.
hinged to the side.
fusing behind a transparent cover.
...More relevant models >>>>
Name: AMAXXS receptacle combination
Model: 950040
Product Name:AMAXX®S receptacle combination
Part No.:950040.
Fitted with:1 CEE 32A, 5p, 400V
2 CEE 16A, 5p, 400V
4 SCHUKO® 16A, 230V.
Fusing:1 RCD 63A, 4p, 0.03A
1 MCB 32A, 3p, C
2 MCB´s 16A, 3p, C
4 MCB´s 16A, 1p, C.
Pre-fuse max:63A.
InA :53A.
RDF:0.55.
Connection/feeder cable:for 2 cable up to 5 x 25mm.
Enclosure size:650 x 225mm (H x W).
Protection type IP44.
highly resistant to chemicals made of AMELAN®.
with highly heat resistant contact carrier and nickel plated contacts.
pre-wired for installation.
enclosure front cover grey RAL 7000.
hinged to the side.
fusing behind a transparent cover.
Product Name:AMAXX® receptacle combination
Part No.:940024.
Fitted with:6 CEE 16A, 3p, 230V.
Fusing:1 RCD 40A, 4p, 0.03A
6 MCB´s 16A, 1p+N, C.
Pre-fuse max.:100A.
InA:24A.
RDF:0.75.
Connection/feeder cable:for 2 cable up to 5 x 25mm² MENNEKES 950040.
Enclosure size:520 x 225 mm (H x W).
Protection type IP44 950040
pre-wired for installation.
hinged to the side.
enclosure and insert made of AMAPLAST MENNEKES 950040.
fusing behind a transparent cover.Product Name:Receptacle strip
Part No.:96705.
Fitted with:3 CEE 16A, 5p, 400V.
Connection/feeder cable:for 1 cable up to 5 x 10mm².
Enclosure size:410 x 97 mm (H x W).
Protection type: IP44 MENNEKES 950040.
pre-wired for installation.
enclosure grey RAL 7035.
enclosure and insert made of AMAPLAST.
hanging clip enclosed.Product Name:AMAXX® receptacle combination
Part No.:930014.
Fitted with:2 CEE 32A, 5p, 400V
2 SCHUKO® 16A, 230V MENNEKES AMAXXS receptacle combination.
Fusing:2 Neozed D02, 3p
2 Neozed D01, 1p.
Pre-fuse max.:100A.
InA:52A.
RDF:0 MENNEKES AMAXXS receptacle combination. 65.
Connection/feeder cable:for 2 cable up to 5 x 25 mm².
Enclosure size:390 x 225 mm (H x W).
Protection type IP44.
pre-wired for installation MENNEKES AMAXXS receptacle combination.
hinged to the side.
enclosure and insert made of AMAPLAST.
fusing behind a transparent cover.Product Name:AMAXX®s receptacle combination
Part No.:960010.
Fitted with:1 CEE 32A, 5p, 400V
1 CEE 16A, 5p, 400V
1 SCHUKO® 16A, 230V.
Fusing:1 MCB 32A, 3p, C
1 MCB 16A, 3p, C
1 MCB 16A, 1p, C.
Pre-fuse max.:63A.
InA:61A.
RDF:0.95.
Connection/feeder cable:for 1 cable up to 5 x 10 mm².
Enclosure size:650 x 112.5 mm (H x W).
Protection type IP44 950040.
pre-wired for installation.
enclosure and insert made of AMAPLAST MENNEKES 950040.
fusing behind a transparent cover.
Part No.:940024.
Fitted with:6 CEE 16A, 3p, 230V.
Fusing:1 RCD 40A, 4p, 0.03A
6 MCB´s 16A, 1p+N, C.
Pre-fuse max.:100A.
InA:24A.
RDF:0.75.
Connection/feeder cable:for 2 cable up to 5 x 25mm² MENNEKES 950040.
Enclosure size:520 x 225 mm (H x W).
Protection type IP44 950040
pre-wired for installation.
hinged to the side.
enclosure and insert made of AMAPLAST MENNEKES 950040.
fusing behind a transparent cover.Product Name:Receptacle strip
Part No.:96705.
Fitted with:3 CEE 16A, 5p, 400V.
Connection/feeder cable:for 1 cable up to 5 x 10mm².
Enclosure size:410 x 97 mm (H x W).
Protection type: IP44 MENNEKES 950040.
pre-wired for installation.
enclosure grey RAL 7035.
enclosure and insert made of AMAPLAST.
hanging clip enclosed.Product Name:AMAXX® receptacle combination
Part No.:930014.
Fitted with:2 CEE 32A, 5p, 400V
2 SCHUKO® 16A, 230V MENNEKES AMAXXS receptacle combination.
Fusing:2 Neozed D02, 3p
2 Neozed D01, 1p.
Pre-fuse max.:100A.
InA:52A.
RDF:0 MENNEKES AMAXXS receptacle combination. 65.
Connection/feeder cable:for 2 cable up to 5 x 25 mm².
Enclosure size:390 x 225 mm (H x W).
Protection type IP44.
pre-wired for installation MENNEKES AMAXXS receptacle combination.
hinged to the side.
enclosure and insert made of AMAPLAST.
fusing behind a transparent cover.Product Name:AMAXX®s receptacle combination
Part No.:960010.
Fitted with:1 CEE 32A, 5p, 400V
1 CEE 16A, 5p, 400V
1 SCHUKO® 16A, 230V.
Fusing:1 MCB 32A, 3p, C
1 MCB 16A, 3p, C
1 MCB 16A, 1p, C.
Pre-fuse max.:63A.
InA:61A.
RDF:0.95.
Connection/feeder cable:for 1 cable up to 5 x 10 mm².
Enclosure size:650 x 112.5 mm (H x W).
Protection type IP44 950040.
pre-wired for installation.
enclosure and insert made of AMAPLAST MENNEKES 950040.
fusing behind a transparent cover.
