Home >> Products >> OMRON >> CJ2/CJ1 PLC >> CJ2M/CJ2H CPU >> CJ2H-CPU64-EIP Programmable Controllers OMRON CJ2H-CPU64-EIP Current consumption(A): 5V,082(See note) 24v, --

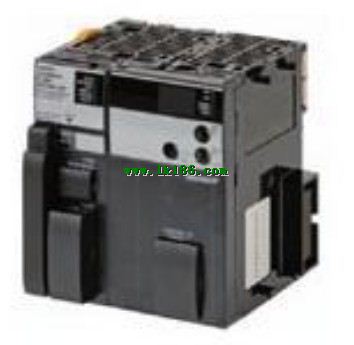

CJ2H-CPU64-EIP Programmable Controllers OMRON CJ2H-CPU64-EIP Current consumption(A): 5V,082(See note) 24v, --

Brand: OMRON
Name: Programmable Controllers
Model: CJ2H-CPU64-EIP
Product name: CJ2H (Built-in EtherNet/IP) CPU Units.
Specifications: I/O capacity/Mountable Units(Expansion Racks),
2,560 points/40 Units(3 Expansion Racks max.) ;
Program capacity, 50K steps; Data memory capacity,
160K words(DM: 32K words, EM: 32K words × 4 bank);
LD nstructio execution time, 0.016 μs.
Current consumption(A): 5V,0.82(See note.); 24v, --.
Standards: UC1, N, L, CE.
CJ2H for high speed, high capacity.
The CJ2H Series is ideal for advanced machine.
automation needs such as those required in image.
processing inspection of electrical components and,
high speed sorting on conveyors.

Unit type: CJ1 Basic I/O Units.
Product name: DC Input Units.
Specifications: I/O points, 32 inputs;
Input voltage and current: 24 VDC, 4.1 mA;
Commons, 16 points, 1 common; External connection,
Fujitsu connector; No. of words allocated, 2 word.
Current consumption: 5V, 0.09A; 24V, --.
Standards: UC1, N, L, CE OMRON CJ2H-CPU64-EIP.
A Wide Range of Basic Input,
Units for High Speed Input and,
Different Applications CJ2H-CPU64-EIP
Receive ON/OFF signals from external,
devices into the PLC System to update,
I/O memory in the CPU Unit.
New high-speed input models CJ1W-ID212 and,
CJ1W-ID233 are now available. These units can,
help to increase system throughput. Unit classification: CJ1 Special I/O Units.
Product name: Isolated type DC Input Units OMRON CJ2H-CPU64-EIP.
Input points: 2 inputs.
Signal range selection: DC voltage:
0 to 1.25 V, -1.25 to 1.25 V, 0 to 5 V,
1 to 5 V, -5 to 5 V, 0 to 10 V, -10 to 10 V,
±10 V selectable range DC current:
0 to 20 mA, 4 to 20 mA.
Conversion speed (resolution): Conversion,
speed: 10 ms/2 inputs, Resolution: 1/64,000.
Accuracy at ambient temperature of 25°C:
Accuracy: (±0 OMRON CJ2H-CPU64-EIP. 05% of F.S.
External connection: Removable terminal block.
No. of unit numbers allocated: 1.
Current consumption: 5V, 0.18A; 24V, 0.09A.
Standards: UC1, CE.
A Single Unit Handling All Types of Inputs,
such as Temperature Sensor Inputs and,
Analog Signal Inputs (e OMRON Programmable Controllers. g., 4 to 20 mA or 1 to 5V).
A Unit supports four input channels,
each of which can be set to a
platinum resistance thermometer, thermocouple,
and DC signal (current, voltage) OMRON Programmable Controllers.
All inputs are isolated. Product name: AC Power Supply Unit.
Power supply voltage: 100 to 240VAC.
Output capacity: 5-VDC output capacity, 5A;
24-VDC output capacity, 0.8A;
Total power consumption, 25w.
Options: 24-VDC service power supply, No;
RUN output, No; Maintenance forecast monitor, Yes OMRON Programmable Controllers.
Standards: UC1, N, L, CE.
Equipped with the RUN output for,
checcking the operation status,
as well as the replacement CJ2H-CPU64-EIP.
notification function for easy,
maintenance.
Lineup of five models including the,
AC power supply (25W).
Stable power supply is available from the,
CJ-series CPU Uniit to each I/O Units via the,
dedicated bus OMRON CJ2H-CPU64-EIP. The most suitable Power Supply,
Unit can be selected among various I/O ,
specifications and/or options.
