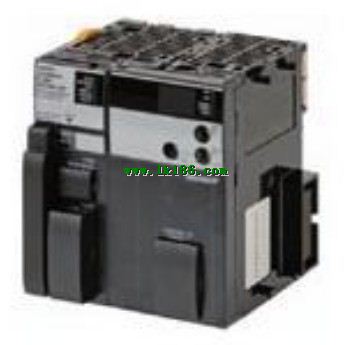

CJ2H-CPU68-EIP Programmable Controllers OMRON CJ2H-CPU68-EIP

OMRON Programmable ControllersCJ2H-CPU68-EIP

CJ2H-CPU68-EIP Introduce | CJ2H-CPU68-EIP Catalog/Manual/Instructions/Software download

Brand: OMRON
Name: Programmable Controllers
Model: CJ2H-CPU68-EIP
Product name: CJ2H (Built-in EtherNet/IP) CPU Units.
Specifications: I/O capacity/Mountable Units(Expansion Racks),
2,560 points/40 Units(3 Expansion Racks max.) ;
Program capacity, 400K steps; Data memory capacity,
832K words(DM: 32K words, EM: 32K words × 25 banks);
LD nstructio execution time, 0.016 μs.
Current consumption(A): 5V,0.82(See note.); 24v, --.
Standards: UC1, N, L, CE.
CJ2H for high speed, high capacity.
The CJ2H Series is ideal for advanced machine.
automation needs such as those required in image.
processing inspection of electrical components and,
high speed sorting on conveyors.

CompoWay/F adapter for communications with Omron Process and Temperature Controllers and Panel Meters.Product name: CJ2M (Built-inEtherNet/IP) CPU Units.
Specifications: I/O capacity/Mountable Units(Expansion Racks),
2, 560 points/40 Units(3 ExpansionRacks max. );Programcapacity,
5K steps;Data memorycapacity, 64K words,
(DM: 32K words, EM: 32K words ×1 bank);
LD nstruction execution time, 0 OMRON CJ2H-CPU68-EIP CJ2H-CPU68-EIP 04 μs;
EtherNet/IP function: YES;
Option board slot: YES.
Current consumption (A): 5V, 0. 7(See note. );24V, --.
Standards: UC1, N, L, CE.
CJ2M for basic machine automation.
The CJ2M Series is ideal for packaging and general.
machine automation needs. Connectivity is assured OMRON CJ2H-CPU68-EIP.
thanks to the built-in USB port and the choice of.
Ethernet and RS-232C/422/485 interfaces on the CPU. Unit type: CJ1 CPU Bus Units.
Product Name: Position Control,
Units with EtherCAT interface.
Specifications: Control output interface,
Control commands executed by,
EtherCAT communications.
Positioning functions: Memory operation,
Direct operation by ladder programming;
No. of axes: 2 axes OMRON CJ2H-CPU68-EIP.
No. of unit numbers allocated: 1.
Current consumption : 5V, 0.46A; 24V,--.
Standards: UC1, CE.
Preeminent control performance and,
easy operation feature of EtherCAT,
improve the production efficiency.
The EtherCAT communications with,
100Mbps baud rate enables fast,
and accurate position control OMRON Programmable Controllers.
A wide range of position control,
functions are available with,
this position control unit OMRON Programmable Controllers.
Product name: CJ-series I/O Control Unit.
Specifications: Mount one I/O Control Unit,
on the CPU Rack when connecting one or,
more Expansion Racks.
Connecting Cable: CS1W-CN@@3 Expansion,
Connecting Cable Connected Unit:
CJ1W-II101 I/O Interface Unit,
Mount to the right of the CPU Unit OMRON Programmable Controllers.
Current consumption: 5V , 0.02A;
24V, --.
Standards: UC1, N, L, CE.
Expand CJ/NJ-series with These Units.
To expand a CJ/NJ-series Controller,
connect an I/O Control Unit to the CPU Rack,
and I/O Interface Unit to the Expansion Rack,
and connect the two Units with I/O Expansion Cable. Unit type: CJ1 Basic I/O Units.
Product name: DC Input/Transistor Output Units.
Specifications: Output type, Sinking;
I/O points, 32 inputs, 32 outputs;
Input voltage,Input current, 24VDC, 4.1mA,
12 to 24VDC, 0.3A;
Commons, 16 ppoints, 1 common;
External connection, MIL connector CJ2H-CPU68-EIP.
No. of words allocated: 4 words.
Current consumption: 5V, 0.14A; 24V, --.
Standards: UC1, N, CE.
A Wide Range of Basic Mixed,
I/O Units for Different Applications,,
and Wiring Methods OMRON CJ2H-CPU68-EIP.
One Mixed I/O Unit has connectors for,
both inputs and outputs.
Use Mixed I/O Units to easily ,
build space-saving systems.
