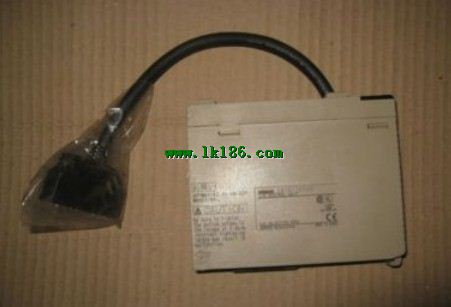

CS1W-IC102 OMRON CS1W-IC102 and open-collector or line-driver outputs Programmable Controllers

Unit type: CS1 Special I/O Units.
Product name: Isolated-type,
Resistance Thermocouple Input Units.
points Input: 4 inputs.
Signal range selection:
Set separately for each input.
I/O type: Pt100, JPt100.
Conversion speed (resolution):
100 ms/4 inputs.
Externa connection: Removable erminal block OMRON CS1W-IC102.
No. of unit numbers allocated: 1.
Current consumption: 5V, 0.15A; 26V, 0 CS1W-IC10215A.
Standards: UC1, CE.
Provides the functionality of isolators,
power supplies, signal converters,
and other devices.
The Analog Input Unit converts analog,
input signals such as 1 to 5 V or 4 to 20mA,
into digital values, and takes the values,
scaled in industrial units, and transfers,
it to the CPU Unit as the process value OMRON CS1W-IC102.
Because of this, no ladder program is required,
at the CPU Unit for scaling.
The Analog Output Unit converts analog output set,
values from the CPU Unit to analog output signals,
such as 4 to 20 mA or 1 to 5 V, and outputs them.
The built-in functions, such as measurement value,
alarms, rate-of-change calculations, and square roots,
have enabled major savings in cost and space compared,
with previous systems OMRON CS1W-IC102.
High-resolution Models and 8-point Input Models are,
also available.
By combining the Units, logging/monitoring.
systems can be constructed,
or the Units can be used together with LCBs/LCUs,
to construct complete process control systems OMRON Programmable Controllers.
Parameters can be easily displayed and set in an,
easy-to-understand form without special tools. Unit type: CS1 CPU Bus Units OMRON Programmable Controllers.
Product Name: MECHATROLINK-II,
compatible Position Control Unit.
Specifications: Control commands,
executed by MECHATROLINK-II,
synchronous communications.
Direct operation by ladder,
programming, Control mode:
Position control, speed control,
or torque control; No OMRON Programmable Controllers. of axes: 16.
No. of unit nummbers allocated: 1 CS1W-IC102.
Current consumption: 5V, 0.36A; 26V, --.
Standards: UC1, CE.
Decrease TCO with Simple Operation,
Reduced Wiring, Batch Settings,
and Batch Management.
Control Servos for up to 16 axes,
in a motion networkk with one Position,
Control Unit that supports MECHATROLINK-II OMRON CS1W-IC102.
MECHATROLINK-II is a registered trademark,
of the MECHATROLINK Members Association.
