E6C2-CWZ6C OMRON E6C2-CWZ6C
Brand:
OMRON

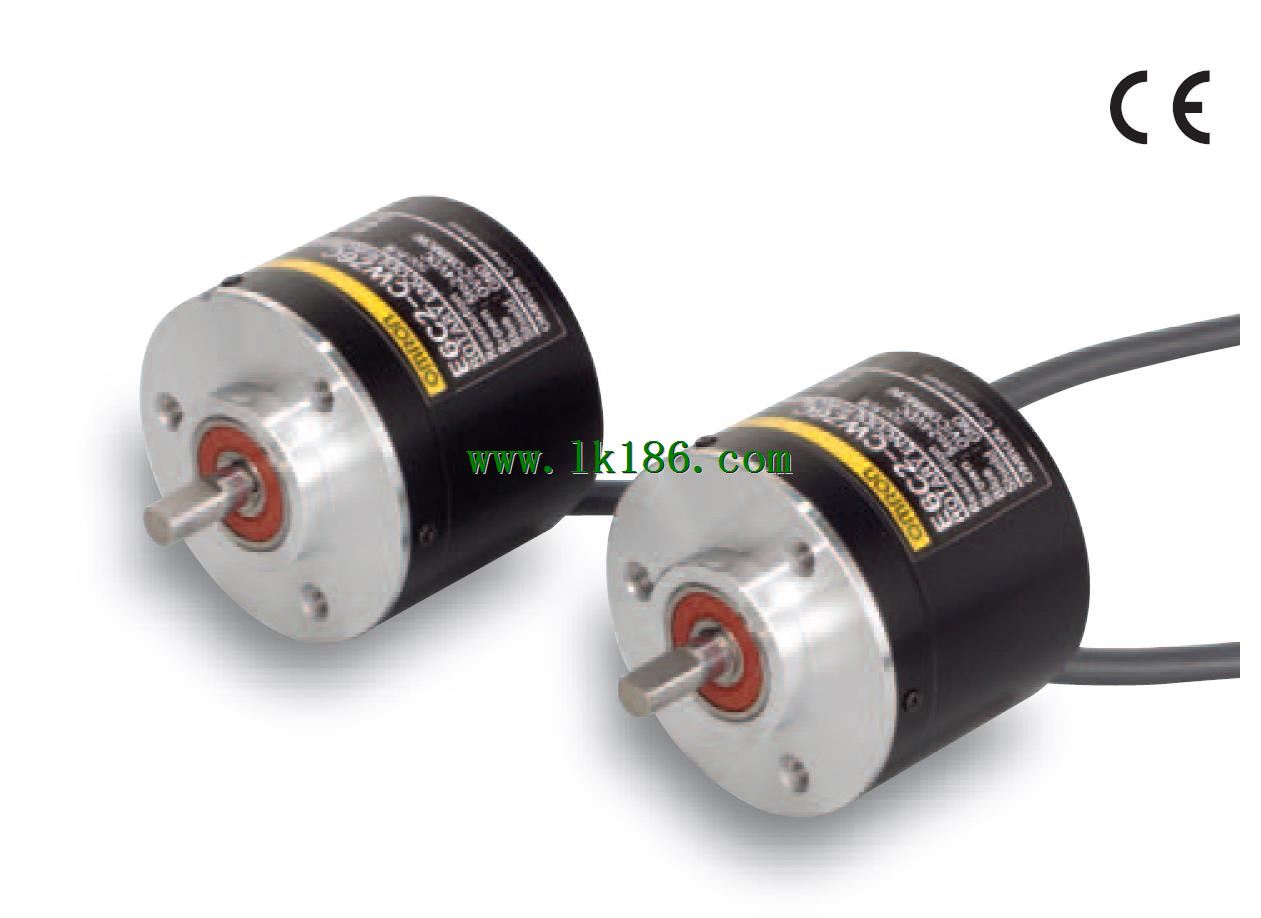

Name: Slim Incremental 50-mm-dia. Rotary Encoder
Model: E6C2-CWZ6C
Power supply voltage: 5 to 24 VDC.
Output configuration: Open-collector output (NPN).
Resolution (pulses/rotation): 10, 20, 30, 40, 50, 60, 100,
200, 300, 360, 400, 500, 600; 720, 800, 1,000, 1,024,
1,200, 1,500, 1,800, 2,000.
General-purpose Encoder with.
External Diameter of 50 mm.
Incremental model.
External diameter of 50 mm.
Resolution of up to 2,000 ppr.
IP64 (improved oil-proof construction with sealed bearings).
Side or back connections are possible. Pre-wired Models with cable,
connected at an angle.
...More relevant models >>>>
Name: Slim Incremental 50-mm-dia. Rotary Encoder
Model: E6C2-CWZ6C
Power supply voltage: 5 to 24 VDC.
Output configuration: Open-collector output (NPN).
Resolution (pulses/rotation): 10, 20, 30, 40, 50, 60, 100,
200, 300, 360, 400, 500, 600; 720, 800, 1,000, 1,024,
1,200, 1,500, 1,800, 2,000.
General-purpose Encoder with.
External Diameter of 50 mm.
Incremental model.
External diameter of 50 mm.
Resolution of up to 2,000 ppr.
IP64 (improved oil-proof construction with sealed bearings).
Side or back connections are possible. Pre-wired Models with cable,
connected at an angle.
