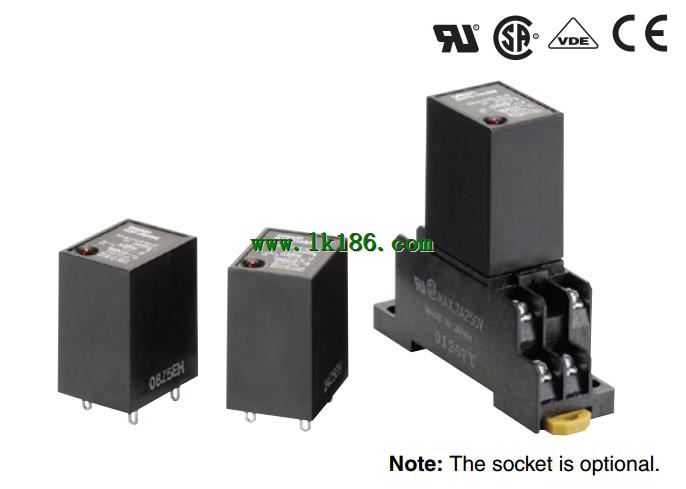

G3F Series/G3FD Series Solid State Relays OMRON G3F Series/G3FD Series

Number of phases: Single-phase.
Insulation method: Phototriac coupler.
Operation indicator: Yes (yellow).
Rated input voltage: 12 to 24 VDC.
Zero cross function: No.
Applicable load: 15 A, 100 to 240 VAC.
Compact, Slim-profile SSRs with Heat,
Sinks. Models with No Zero Cross for,
a Wide Range of Applications OMRON G3F Series/G3FD Series.
RoHS compliant.
Models also available with no zero cross,
Surge pass protection improved surge dielectric strength for,
output currents G3F Series/G3FD Series (OMRON testing).
Compact with a slim profile.
Mount to DIN Track or with screws.
Conforms to UL, CSA, and EN standards (TÜV certification). Terminal (wire connection): Push-In Plus Terminal.
Applicable output load: AC load.
Zero cross function: Yes OMRON G3F Series/G3FD Series.
Rated input voltage: AC/DC 24V.
Global standard size,
low profile slim I/O relay with width 6.2 mm,
slim I/O solid state relay.
Realized about 25% lower profile than conventional,
products, contributing to further miniaturization of the,
control panel.
Push-In Plus terminal blocks are used to save wiring work,
in comparison with conventional screw terminals.
(Wiring time is reduced by 60%* in comparison with,
traditional screw terminals OMRON G3F Series/G3FD Series. ).
No screw loosening means maintenance-free application,
realizing high reliability.
Hand-free structure that holds an inserted flat-blade,
screwdriver to achieve easier wiring work for stranded wires OMRON Solid State Relays.
Screw terminal is also stocked to meet the screw type needs.
Mounted relay or solid-state relay has a plug-in terminal OMRON Solid State Relays.
that is difficult to bend at the time of exchange. Isolation: Photocoupler.
Zero cross function: Yes.
Indicator: Yes.
Rated output load: 5 A at 100 to 240 VAC.
Rated input voltage: 5 to 24 VDC.
International Standards for G3B Series,
Same Profile as MK Power Relays OMRON Solid State Relays.
Shape-compatible with mechanical relays.
Certified by UL, CSA, and VDE (models numbers with a suffix of “-VD”).
Plug-in type, same size as MK Power Relays.
Operation indicator provided to confirm input.
DC Output model available with 3 to 125-VDC load voltage,
range for high-voltage applications. Contact form: SPST-NO/SPST-NC.
Type: Models with Built-in Operation Indicators.
Rated voltage: AC: 24, 100, 110, 120, 200, 220, 230, 240;
DC: 12, 24, 48, 110, 220.
MK-S-series Relays with DC-switching,
Models That Can Switch 220 VDC, 10 A,
(Resistive Load).
Switch a DC load of 220 VDC, 10 A (resistive load).
Models for AC Loads can switch 250 VAC, 15 A (resistive load).
Lineup iincludes models with SPST-NO and SPST-NO/SPST,
NC contact forms G3F Series/G3FD Series.
Using a SPST-NO/SPST-NC contact form enables detecting,
contact welding. (When the NO contacts become welded, the,
NC contacts will maintain a minimum distance of 0 OMRON G3F Series/G3FD Series. 5 mm.).
Models available with operation indicators and built-in test buttons.
RoHS compliant.
Standards: UL, IEC (TÜV certification).
