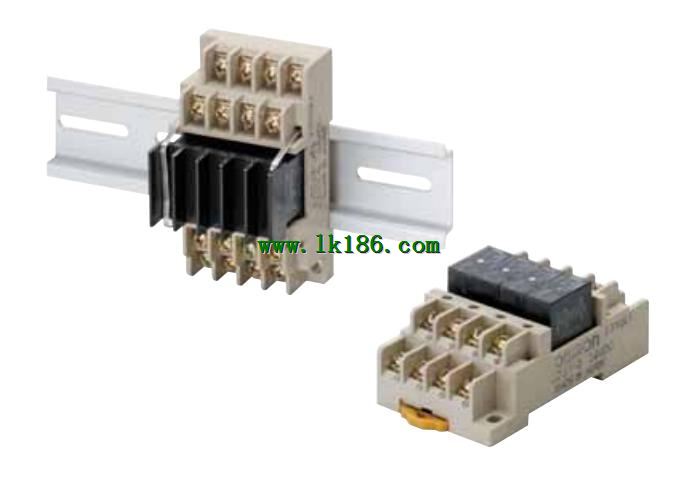

G3S4-D OMRON G3S4-D sockets, and heat sink in one unit

Contact configuration: Four SPST-NO relays.
Heat sink: No.
Built-in SSRs: G3S-201PL-PD.
Zero cross function: No.
Applicable output load: 0.6 A at 75 to 264 VAC(See note 1.).
Rated voltage: 5 VDC, 12 VDC, 24 VDC.
Compact Terminal SSR with 4 Outputs.
Easy-to-use SSR block that combines four compact G3S SSRs,
sockets, and heat sink in one unit OMRON G3S4-D.
Easy wiring with separate I/O terminal construction G3S4-D
LED operation indicator.
Special socket used for easy Relay replacement.
Mounts either on DIN track or with screws. Isolation: Photocoupler.
Zero cross function: Yes.
Indicator: NO.
Rated output load: 3 A at 100 to 240 VAC *1 .
Rated input voltage: 4 to 24 VDC.
New Models with International Standards OMRON G3S4-D.
Added to G3H Series (-VD in model number).
Same Profile as LY1 and LY2 Bi-power.
Relays.
Certified by UL, CSA, and VDE (models numbers with a suffix of “-VD”).
Socket type, same size as LY Power Relays.
Operation indicator provided to confirm input,
(models numbers with “N” before the suffix). Type: Conforming to auxiliary power relay specifications.
Contact form: DPDT+DPST-NO OMRON G3S4-D.
Cased: Plug-in (octal pins) terminals.
Mechanically Latching Relays Based on the.
MM Power Relay.
Low power consumption due to mechanical latch for economic operation.
Relays with mixed coil specifications can be produced,
(e OMRON Terminal SSR. g., AC setcoil and DC reset coil).
Operational response fast enough to enable pulse signal power applications.
Ambient operating temperature: –10°C to 55°C OMRON Terminal SSR. Global standard size, low profile slim.
I/O relay with width 6.2 mm.
Realized about 25% lower profile than conventional.
products, contributing to further miniaturization of the control panel.
Realized opening and closing ability with one pole 6 A slim shape.
Micro load products for one pole 50 mA using Au-plated OMRON Terminal SSR.
contacts for small load switching also available.
Since G2RV is a transparent case, confirming the state of,
the contact with the naked eye is possible, and easy to,
confirm abnormality on-site (installed location).
Screw terminal is also stocked to meet the screw type needs.
Mounted relay uses plug-in terminals that are difficult to,
bend when exchanging. Insulation method: Photocoupler.
Operation indicatoor: Yes (yellow) G3S4-D.
Zero cross function: Yes.
Applicable output load: 75 A, 180 to 480 VAC.
Rated input voltage: 5 to 24 VDC.
High-power, Load-control SSRs with.
High Current of 75 or 150 A and High.
Voltage of 240 or 480 VAC.
RoHSS compliant OMRON G3S4-D.
Models also available with no zero cross.
Replaceable power elements.
Conforms to cULus standards and EN standards (TÜV certification).
