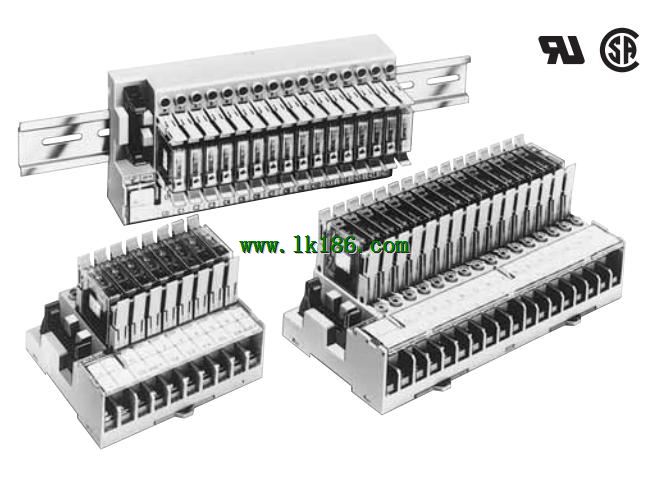

G7TC-ID16 OMRON I/O Block G7TC-ID16
Brand:
OMRON
Name: I/O Block
Model: G7TC-ID16
I/O classification: Input.
I/O points: 16.
Internal I/O circuit common: NPN (– common).
Rated voltage: 12 VDC, 24 VDC, 100 (110) VDC.
Single Cable Connection to PLC Means.
Space is Saved and Less Control Panel.
Wiring is Required.
Compact size: 182 (W) 85 (D) 68 (H) mm,
(8-point Output Block width is 102 mm).
Connects to the PC through the connecting cable,
(G79 Series) and connector, and requires only a,
snap-in operation.
Surge suppressor circuit built-in.
Immediate recognition of I/O signal status using,
LED operation indicators.
G3TA I/O Solid-state relay can be mounted instead,
of G7T.
Mounts easily on a DIN track.
Approved by UL, CSA (except for G7TC-OC16-1).
...More relevant models >>>>
Name: I/O Block
Model: G7TC-ID16
I/O classification: Input.
I/O points: 16.
Internal I/O circuit common: NPN (– common).
Rated voltage: 12 VDC, 24 VDC, 100 (110) VDC.
Single Cable Connection to PLC Means.
Space is Saved and Less Control Panel.
Wiring is Required.
Compact size: 182 (W) 85 (D) 68 (H) mm,
(8-point Output Block width is 102 mm).
Connects to the PC through the connecting cable,
(G79 Series) and connector, and requires only a,
snap-in operation.
Surge suppressor circuit built-in.
Immediate recognition of I/O signal status using,
LED operation indicators.
G3TA I/O Solid-state relay can be mounted instead,
of G7T.
Mounts easily on a DIN track.
Approved by UL, CSA (except for G7TC-OC16-1).
