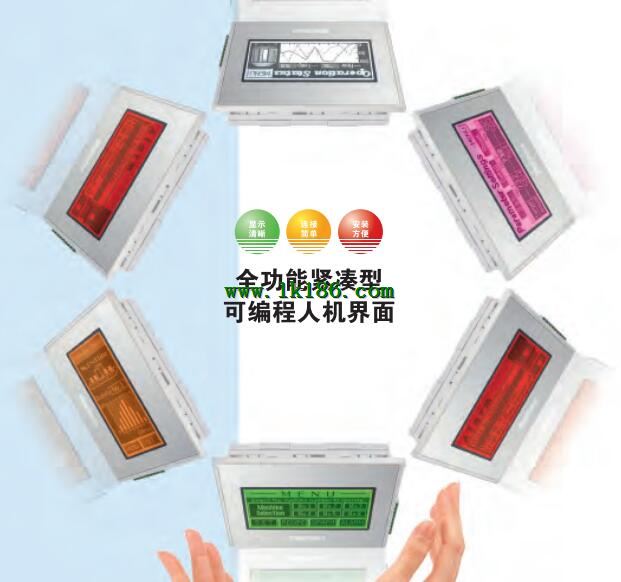

GP4105G1D Serial RS-232C touch screen Proface GP4105G1D

"Size: 5.7 inches.
Display type: single color (blue) LCD.
Resolution: 320 x 240 pixels (QVGA).
Display color: monochrome (8 gray level).
Power supply: DC24V.
Interface: USB (TYPE-A), RS-232C, RS-422/485 (MPI).
ID management and operation log reduces downtime.
Improve the operation mode, reduce the cost and workload Proface GP4105G1D.
Analysis of failure causes according to the operation log.
Check register status on historical trend chart GP4105G1D
Drag and drop functionality makes the software interface easier to operate.
A variety of components to provide a variety of components, easy to create a beautiful picture.
In addition, there are a variety of 256 color components can be used.
Using the alarm log to quickly check and display the alarm message and register value, it is easier to find the cause of the fault Proface GP4105G1D.
Register value will be recorded when the alarm is issued.
Therefore, the state of the register and its value can be obtained while acquiring the alarm message.
A comparison of the data is helpful to find the cause of the fault.
These "sample parts" can be used directly, and the design time is greatly reduced Proface GP4105G1D.
According to ID number of easy access to the operation log, through the analysis of the operation to improve production efficiency.
Use ID based on the number of authorized mode of operation, can be recorded when, who performed the operation.
Using this data, you can analyze the causes of all the faults that have occurred Proface Serial RS-232C touch screen.
Brightness adjustment: 8 level adjustment can be carried out by touch panel Proface Serial RS-232C touch screen.
You can easily and intuitively set the address by dragging and dropping the mouse.
In addition, click on the use of the address can be displayed on the screen number and part number.
Click the part number to jump to the screen using the widget.
The same software supports all 3000 series of Pro-face man-machine interface Proface Serial RS-232C touch screen.
From the screen to create the programming, the functions are simple and easy to use.
Learn a software, master all the skills.
Support efficient image creation. "Controller DIO (PNP model):6 point type NPN input, 2 point NPN type output, connector: 12 pin.
Specification: DC24/C (control) level models.
Display type: TFT color LCD (Gao Liangdu).
Display size: 10.4 inches.
Resolution: 640 x 480 pixels (VGA).
Display color: 65536 color (no flicker) /16384 color (flashing).
Backlight: cold cathode lamp (replaceable).
Brightness adjustment: 8 level adjustment can be carried out by touch panel.
Variable area: 64KB SRAM (using lithium battery).
Program area: EPROM 132KB FLASH.
Step number: equivalent to 15000 steps.
Touch panel type: resistance type (analog).
Simulated running status on PC.
Use PC simulation function, do not need to transfer the picture to GP,
You can check all the functions of GP on the PC - including the screen operation, D script, logical script.
Record machine status to diagnose error causes.
GP3000 series of M (Multimedia) level models of the event recording function can be recorded in the operation of the device,
This will help save and analyze the error log.
Rich sample images can reduce programming time.
Pro-face provides a large number of sample images and 3D parts,
So you can easily create a beautiful and intuitive picture, in order to save editing time.
Can improve the efficiency of the 5 functions.
Using EX GP-Proo can easily create a clear picture and save the creation time GP4105G1D.
Screen and logic programming software EX GP-Pro interface is very friendly,
The drag and drop feature makes the software interface easy to operate.
EX GP-Pro powerful features, such as 3D simulation components, image fonts and simulation functions,
Even beginners can easily and quickly grasp how to create a picture Proface GP4105G1D.
