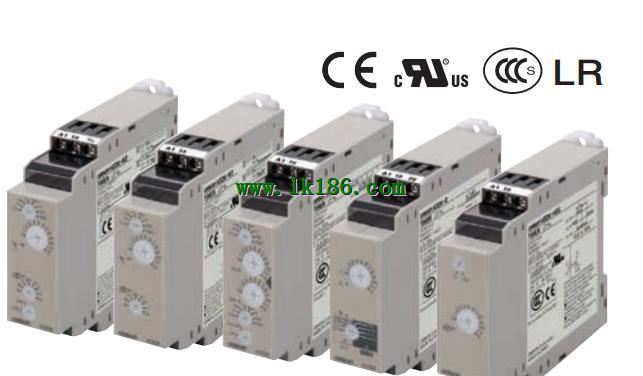

>> H3DK-M1 Multi-range, Multi-mode Timer The time-limit DPDT output contacts can be changed to time-limit, OMRON H3DK-M1
H3DK-M1 Multi-range, Multi-mode Timer The time-limit DPDT output contacts can be changed to time-limit, OMRON H3DK-M1
Brand:
OMRON
Name: Multi-range, Multi-mode Timer
Model: H3DK-M1
Supply voltage: 24 to 240 VAC/DC.
Control output: Contact output, SPDT (time-limit SPDT).
Eight-mode Timer.
Multiple time ranges and operating modes let you cover a wide,
range of applications.
The time-limit DPDT output contacts can be changed to time-limit,
SPDT and instantaneous SPDT output contacts using a switch.
Sequence checks are easily performed by setting an instanta,
neous output to 0.
Start signal control for the H3DK-M.
...More relevant models >>>>
Name: Multi-range, Multi-mode Timer
Model: H3DK-M1
Supply voltage: 24 to 240 VAC/DC.
Control output: Contact output, SPDT (time-limit SPDT).
Eight-mode Timer.
Multiple time ranges and operating modes let you cover a wide,
range of applications.
The time-limit DPDT output contacts can be changed to time-limit,
SPDT and instantaneous SPDT output contacts using a switch.
Sequence checks are easily performed by setting an instanta,
neous output to 0.
Start signal control for the H3DK-M.
