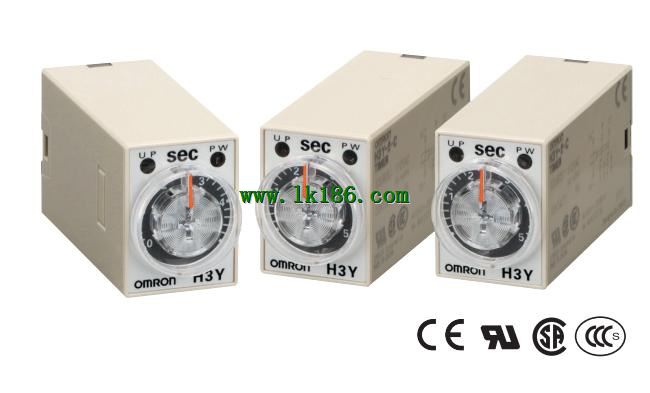

>> H3Y-4-C Supply voltage: AC110V, AC220V (50/60Hz) DC24V OMRON H3Y-4-C
H3Y-4-C Supply voltage: AC110V, AC220V (50/60Hz) DC24V OMRON H3Y-4-C
Brand:
OMRON
Name: Solid state timer
Model: H3Y-4-C
Operation / reset system: time limit operation / auto reset.
Time limit contact: 4PDT.
Time range: 0.1s ~ 30min.
Supply voltage: AC110V, AC220V (50/60Hz); DC24V.
Mounting: surface /DIN guide rail mounting (with socket).
Micro timer compatible with MY relay.
ON delay function, can accurately control the time.
Large and transparent time setting knob is easy to set up time.
Pin configuration compatible with MY power relay.
Access to UL, CSA and CCC certification in line with EN61812-1 and EMC standards.
