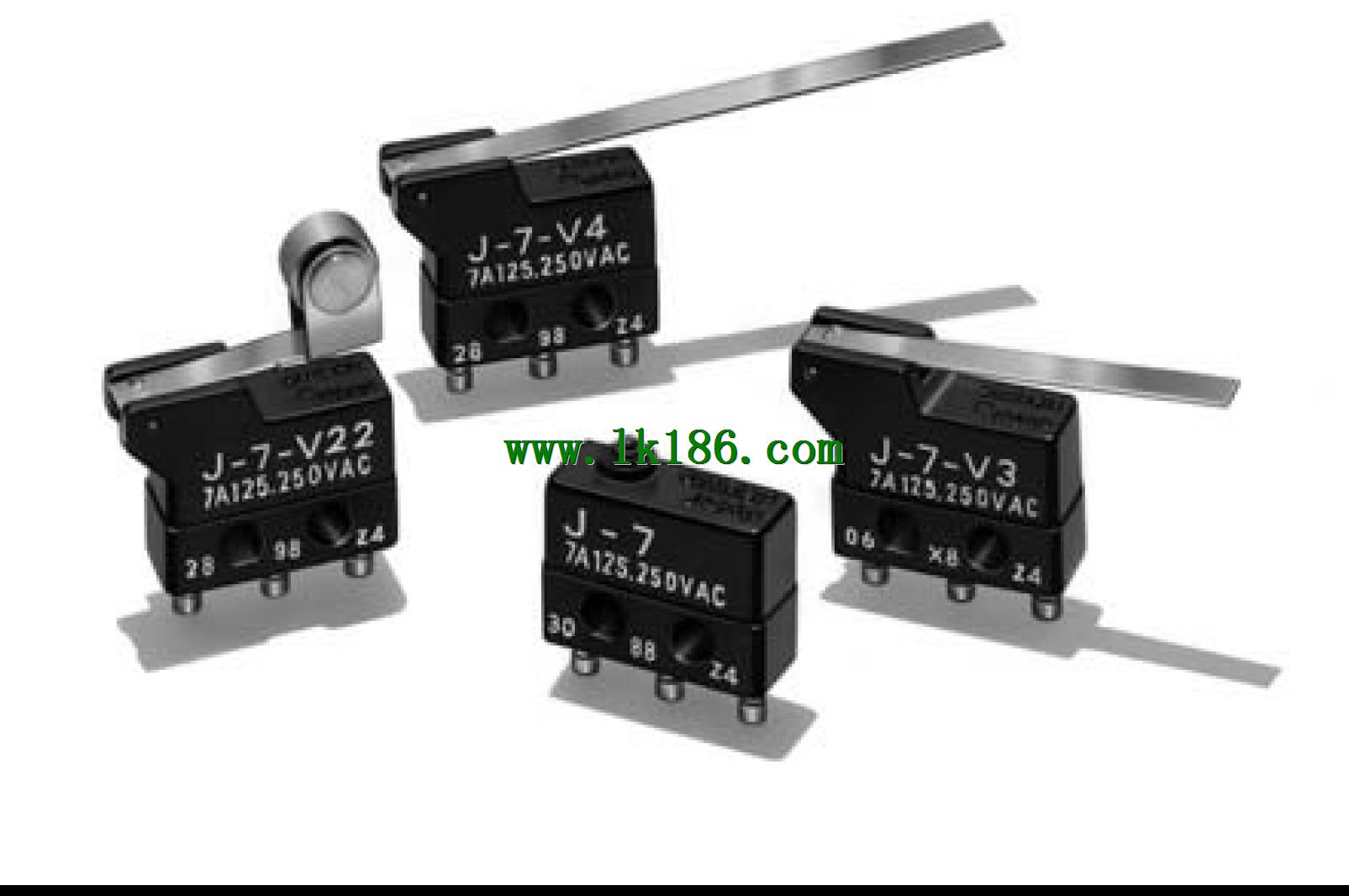

Name: Ultra Subminiature Basic Switch
Model: J-7-V
Actuator: Short hinge lever.
Subminiature Models.
Capable of Large-capacity.
load of 7A.
Snap-action switch allows large-capacity.
switching (7A at 250 VAC) in spite of its small size.
Particularly suitable as control switches for,
applications where there are restrictions on,
installation space and weight.
