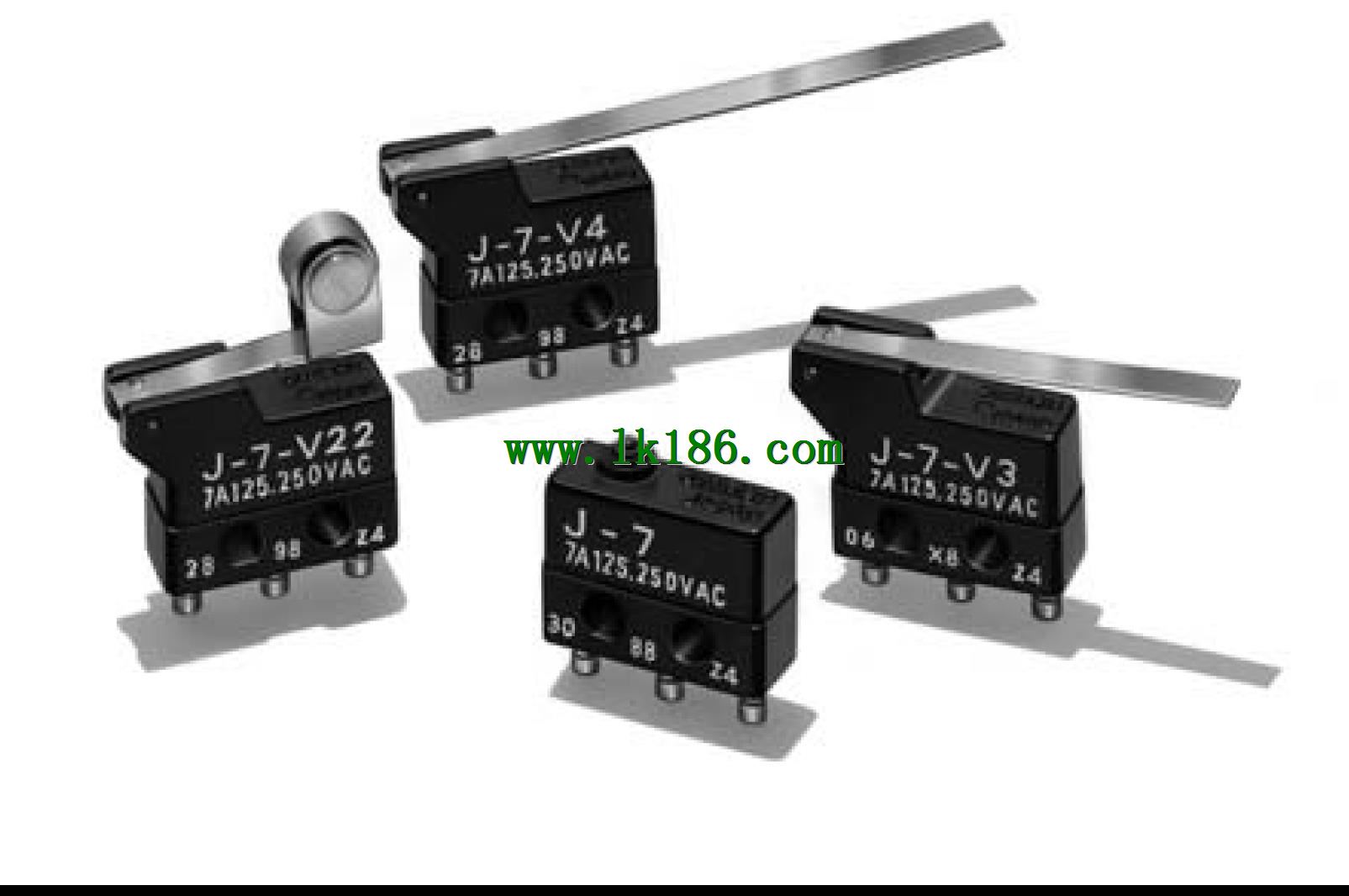

>> J-7-V3 Ultra Subminiature Basic Switch OMRON J-7-V3
J-7-V3 Ultra Subminiature Basic Switch OMRON J-7-V3
Brand:
OMRON
Name: Ultra Subminiature Basic Switch
Model: J-7-V3
Actuator: Hinge lever.
Subminiature Models.
Capable of Large-capacity.
load of 7A.
Snap-action switch allows large-capacity.
switching (7A at 250 VAC) in spite of its small size.
Particularly suitable as control switches for,
applications where there are restrictions on,
installation space and weight.
