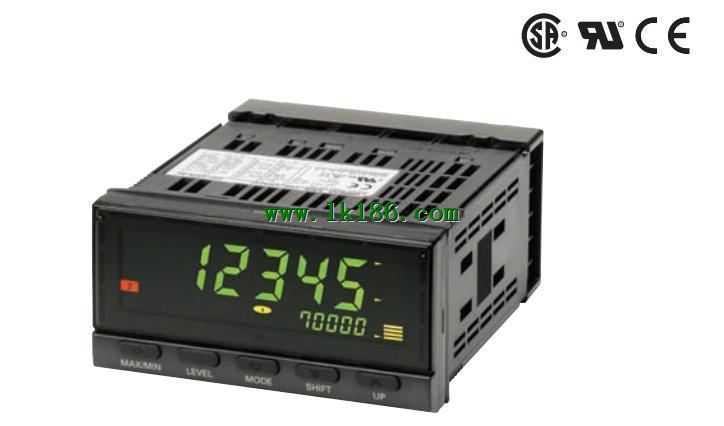

>> K3HB-CNB-A1 AC100-240 Cumulative / increase / decrease pulse meter OMRON K3HB-CNB-A1 AC100-240 High speed pulse
K3HB-CNB-A1 AC100-240 Cumulative / increase / decrease pulse meter OMRON K3HB-CNB-A1 AC100-240 High speed pulse
Brand:
OMRON
Name: Cumulative / increase / decrease pulse meter
Model: K3HB-CNB-A1 AC100-240
Input type: NPN/ voltage pulse input type.
Event input terminal 5 points (HOLD, RESET, COMPENSATION) is equipped with.
External power supply DC12V80mA.
No output: -.
96 (W) * 48 (H * 95mm) depth.
Power supply voltage: AC100 ~ 240V.
High speed pulse.
Measuring, increasing or decreasing pulse meter.
Action determine the color, can switch the green / Red 2 kinds of color display.
The best choice of rotating encoder and all kinds of ON/OFF pulse signal at high speed,
Cumulative pulse input is 50kHz, phase difference pulse is 25kHz, increase or decrease of pulse is 30kHz.
Supports no voltage contact input to 30Hz.
The count value can be converted to any value
...More relevant models >>>>
Name: Cumulative / increase / decrease pulse meter
Model: K3HB-CNB-A1 AC100-240
Input type: NPN/ voltage pulse input type.
Event input terminal 5 points (HOLD, RESET, COMPENSATION) is equipped with.
External power supply DC12V80mA.
No output: -.
96 (W) * 48 (H * 95mm) depth.
Power supply voltage: AC100 ~ 240V.
High speed pulse.
Measuring, increasing or decreasing pulse meter.
Action determine the color, can switch the green / Red 2 kinds of color display.
The best choice of rotating encoder and all kinds of ON/OFF pulse signal at high speed,
Cumulative pulse input is 50kHz, phase difference pulse is 25kHz, increase or decrease of pulse is 30kHz.
Supports no voltage contact input to 30Hz.
The count value can be converted to any value
