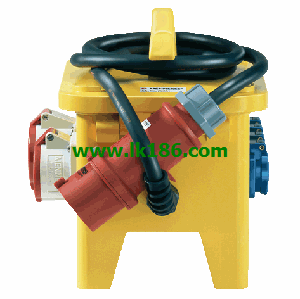

MENNEKES 70734 EverGUM receptacle combination MENNEKES 70734
Brand:
Mennekes
Name: EverGUM receptacle combination
Model: 70734
Product Name:EverGUM receptacle combination
Part No.:70734.
Fitted with:1 CEE 32A, 5p, 400V
1 CEE 16A, 5p, 400V
4 SCHUKO® 16A, 230V.
Fusing:1 RCD 40A, 4p, 0.03A
1 MCB 16A, 3p,C
2 MCB´s 16A, 1p, B.
Pre-fuse max:32A.
InA :32A.
RDF:0.45.
Connection/feeder cable:3 m H07RN-F5G4 with CEE-plug 32A, 5p, 400V.
Enclosure size:306 x 230 x 288 mm (L x W x H).
Protection type IP44.
solid rubber enclosure, signal yellow RAL 1003.
pre-wired for installation.
...More relevant models >>>>
Name: EverGUM receptacle combination
Model: 70734
Product Name:EverGUM receptacle combination
Part No.:70734.
Fitted with:1 CEE 32A, 5p, 400V
1 CEE 16A, 5p, 400V
4 SCHUKO® 16A, 230V.
Fusing:1 RCD 40A, 4p, 0.03A
1 MCB 16A, 3p,C
2 MCB´s 16A, 1p, B.
Pre-fuse max:32A.
InA :32A.
RDF:0.45.
Connection/feeder cable:3 m H07RN-F5G4 with CEE-plug 32A, 5p, 400V.
Enclosure size:306 x 230 x 288 mm (L x W x H).
Protection type IP44.
solid rubber enclosure, signal yellow RAL 1003.
pre-wired for installation.
Product Name:AMAXX® receptacle combination
Part No.:920010.
Fitted with:1 CEE 32A, 5p, 400V
2 SCHUKO® 16A, 230V.
Fusing:1 Neozed D02, 3p
1 Neozed D01, 1p.
Pre-fuse max.:63A.
InA:42A .
RDF:0.8.
Connection/feeder cable:for 1cable up to 5 x 10 mm² MENNEKES 70734.
Enclosure size:260 x 225 mm (H x W) 70734
Protection type IP44.
pre-wired for installation.
hinged to the side.
enclosure and insert made of AMAPLAST MENNEKES 70734.
fusing behind a transparent cover.Product Name:AMAXX® receptacle combination
Part No.:921260.
Fitted with:1 french/belg. standard 16A, 2p+E, 230V
1 CEE 16A, 2p, 20-25V.
Fusing:1 RCD 25A, 2p, 0.03A
1 MCB 6A, 2p, C
1 MCB 16A, 1p+N, C.
1 single phase transformer 230V/24V, 160VA.
Connection/feeder cable:for 1 cable up to 3 x 6mm² MENNEKES 70734.
Enclosure size:260 x 225 mm (H x W).
Protection type IP44.
pre-wired for installation.
hinged to the side.
enclosure and insert made of AMAPLAST MENNEKES EverGUM receptacle combination MENNEKES EverGUM receptacle combination.
fusing behind a transparent cover.Product Name:Receptacle strip
Part No.:88677.
Fitted with:8 SCHUKO® 16A, 230V.
insert tilted through 30º.
Connection/feeder cable:for 1 cable up to 3 x 6mm² MENNEKES EverGUM receptacle combination.
Enclosure size:410 x 97 mm (H x W).
Protection type: IP44.
pre-wired for installation.
enclosure grey RAL 7035.
enclosure and insert made of AMAPLAST.
hanging clip enclosed.Product Name:AMAXX®S receptacle combination
Part No.:940015.
Fitted with:1 CEE 32A, 5p, 400V
1 CEE 16A, 5p, 400V
3 SCHUKO® 16A, 230V.
Fusing:1 RCD 63A, 4p, 0.03A
1 MCB 32A, 3p, C
1 MCB 16A, 3p, C
3 MCB´s 16A, 1p, C.
Pre-fuse max:100A.
InA :45A.
RDF:0.7.
Connection/feeder cable:for 2 cable up to 5 x 25mm².
Enclosurre size:520 x 225mm (H x W) 70734.
Protection type IP44.
highly resistant to chemicals made of AMELAN®.
with highly heat resistant contact carrrier and nickel plated contacts MENNEKES 70734.
pre-wired for installation.
enclosure front cover grey RAL 7000.
hinged to the side.
fusing behind a transparent cover.
Part No.:920010.
Fitted with:1 CEE 32A, 5p, 400V
2 SCHUKO® 16A, 230V.
Fusing:1 Neozed D02, 3p
1 Neozed D01, 1p.
Pre-fuse max.:63A.
InA:42A .
RDF:0.8.
Connection/feeder cable:for 1cable up to 5 x 10 mm² MENNEKES 70734.
Enclosure size:260 x 225 mm (H x W) 70734
Protection type IP44.
pre-wired for installation.
hinged to the side.
enclosure and insert made of AMAPLAST MENNEKES 70734.
fusing behind a transparent cover.Product Name:AMAXX® receptacle combination
Part No.:921260.
Fitted with:1 french/belg. standard 16A, 2p+E, 230V
1 CEE 16A, 2p, 20-25V.
Fusing:1 RCD 25A, 2p, 0.03A
1 MCB 6A, 2p, C
1 MCB 16A, 1p+N, C.
1 single phase transformer 230V/24V, 160VA.
Connection/feeder cable:for 1 cable up to 3 x 6mm² MENNEKES 70734.
Enclosure size:260 x 225 mm (H x W).
Protection type IP44.
pre-wired for installation.
hinged to the side.
enclosure and insert made of AMAPLAST MENNEKES EverGUM receptacle combination MENNEKES EverGUM receptacle combination.
fusing behind a transparent cover.Product Name:Receptacle strip
Part No.:88677.
Fitted with:8 SCHUKO® 16A, 230V.
insert tilted through 30º.
Connection/feeder cable:for 1 cable up to 3 x 6mm² MENNEKES EverGUM receptacle combination.
Enclosure size:410 x 97 mm (H x W).
Protection type: IP44.
pre-wired for installation.
enclosure grey RAL 7035.
enclosure and insert made of AMAPLAST.
hanging clip enclosed.Product Name:AMAXX®S receptacle combination
Part No.:940015.
Fitted with:1 CEE 32A, 5p, 400V
1 CEE 16A, 5p, 400V
3 SCHUKO® 16A, 230V.
Fusing:1 RCD 63A, 4p, 0.03A
1 MCB 32A, 3p, C
1 MCB 16A, 3p, C
3 MCB´s 16A, 1p, C.
Pre-fuse max:100A.
InA :45A.
RDF:0.7.
Connection/feeder cable:for 2 cable up to 5 x 25mm².
Enclosurre size:520 x 225mm (H x W) 70734.
Protection type IP44.
highly resistant to chemicals made of AMELAN®.
with highly heat resistant contact carrrier and nickel plated contacts MENNEKES 70734.
pre-wired for installation.
enclosure front cover grey RAL 7000.
hinged to the side.
fusing behind a transparent cover.
