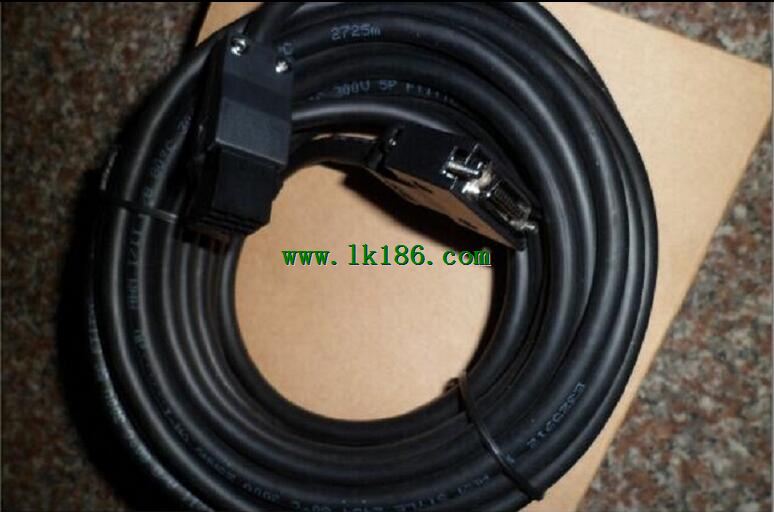

MITSUBISHI MR-JHSCBL10M-L Electric machinery MITSUBISHI MR-JHSCBL10M-L

Uses: MR-BAT6V1SET-A, MR-BT6VCASE use.MITSUBISHI universal AC servo amplifier MELSERVO-JE series.
Rated output: 0.75kw.
Interface: General purpose.
Compatible motor: HG-KN73J-S100, HG-KN73BJ-S100.
MR-JE-A is equipped with a positioning function!
Be able to realize the positioning of the point set list and the way of the program MITSUBISHI MR-JHSCBL10M-L.
At the same time, it also has a simple cam, encoder to follow, mark detection and other equipment can achieve high performance of the advanced functional group MR-JHSCBL10M-L
Without positioning module, the controller can build a positioning system, which can simplify the system.
Command interface using DI/O and RS-422/RS-485 serial communication (maximum 32 axis),
Can simply set the positioning data through the Configurator2 MR MITSUBISHI MR-JHSCBL10M-L. Servo motor series: low inertia, medium / high power.
Rated output: 3.5kw.
Rated speed: 3000r/min.
Electromagnetic brake: No.
Shaft end specification: Standard (straight axis).
Features: low inertia for high speed / acceleration and deceleration operation occasions.
IP level: IP67.
Application example:
1, food processing machinery.
2, printing machine MITSUBISHI MR-JHSCBL10M-L.
3, injection molding machine (11KW, 15KW).
4, large press machine (11KW, 15KW).
The protection level of the HF-SP/HF-JP series servo motor is IP67 (except the shaft part).
Low inertia of the power servo motor (0.5kW ~ 9kW), the maximum speed: 6000r/min (rated speed: 3000r/min),
Suitable for high frequency positioning and acceleration / deceleration operations, especially for food processing machines and printing machines MITSUBISHI Electric machinery MITSUBISHI Electric machinery.
Low inertia, high power, no cooling fan servo motor (11kW and 15kW), maximum speed: 3000r/min (rated speed: 1500r/min).
The motor structure is more compact due to the adoption of the non cooling fan design, and the connection is reduced by using the power source connector MITSUBISHI Electric machinery.
(compared with the HF-LP series servo motor with the same power, the volume is reduced by about 46%, and the weight is reduced by about 34%,
Suitable for high frequency positioning and acceleration / deceleration operations, especially for injection molding machines and large presses.
HF-JP703 (4) /903 (4) maximum speed: 5000r/min. Drive unit.
MITSUBISHI universal AC servo amplifier MELSERVO-J4 series.
Rated output: 45kw.
Interface: universal type.
Power supply: three phase AC400V.
Support position control, speed control, torque control.
Position control to follow the position instructions.
When the contrrol is inserted, the position control is performed MR-JHSCBL10M-L.
Speed control follows the speed command to control the speed within a certain range.
Torque control to follow the torque command to control the stable torque.
Function of switching amplitude MITSUBISHI MR-JHSCBL10M-L. The increase in the process of switching and stopping,
And in the operation of the use of the switching signal, switching growth.
