Cable length: 20m.
For MR-J2S-700A (4) /CP/CL or less.
Encoder for HC-SFS; HC-LFS; HC-RFS; 2000r/min HA-LFS; HC-UFS servo motor.
Servo motor series: low inertia, medium / high power.
Rated output: 22.0kw.
Rated speed: 1500r/min.
Electromagnetic brake: with.
Shaft end specification: Standard (straight axis).
Voltage: 400V level.
Features: low inertia has low medium and high speed three models, suitable for different applications as a standard, 30KW and above servo motor can be installed flange or bracket MITSUBISHI MR-JHSCBL20M-L

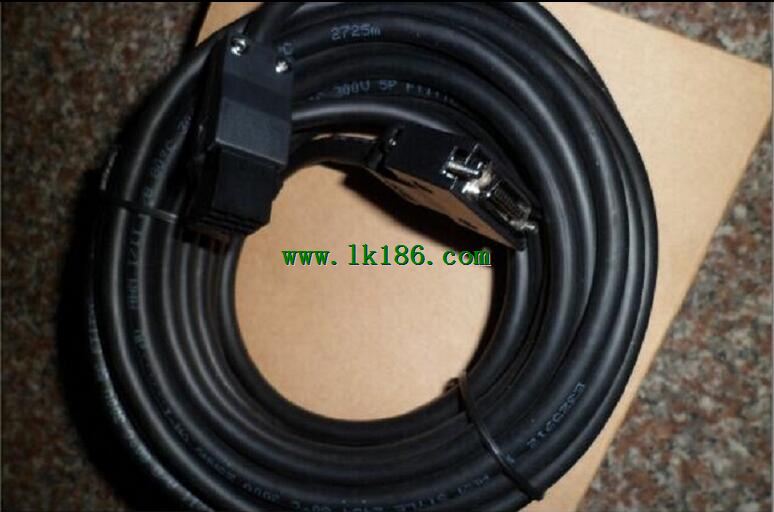

MR-JHSCBL20M-L
IP level: IP44.
Application example:
1, injection molding machine.
2, semiconductor manufacturing equipment.
3, large material handling system.
4, stamping machine.
Abundant motor product line can optimize the performance of the machine.
Has a rich motor product line including a rotary servo motor, linear servo motor and direct drive motor MITSUBISHI MR-JHSCBL20M-L. Servo motor series: medium inertia, small capacity.
Rated output: 1.5kw.
Rated speed: 2000r/min.
Electromagnetic brake: No.
Oil seal: incidental (Note 1, note 2, note 3).
Power supply: 200V.
Note 1 through HG-KR and HG-MR series 0.1kW and HG-SR series can be supported.
Note 2 with the speed reducer case, do not configure the oil seal.
Note 3 with oil seal HG-KR, HG-MR series servo motor''s appearance size standard is different MITSUBISHI MR-JHSCBL20M-L.
Stable driving of medium capacity and medium inertia type products.
Through the optimization of structural design, to achieve the minimum length of the industry.
High speed & high torque MITSUBISHI Electric machinery. Shorten the positioning time, achieve high-speed equipment.
Reducing the electric torque ripple.
Through the combination of the optimal number of the motor and the slot number, the torque ripple is greatly reduced,
To further realize the smooth constant speed device MITSUBISHI Electric machinery.
Improve the environmental performance of HG-SR, HG-JR series of products using IP67. Servo motor series: low inertia, medium / high power.
Rated output: 3.5kw MITSUBISHI Electric machinery.
Rated speed: 3000r/min.
Electromagnetic brake: with.
Shaft end specification: Standard (straight axis).
Features: low inertia for high speed / acceleration and deceleration operation occasions.
IP level: IP67.
Application example:
1, food processing machinery.
2, printing machine.
3, injection molding machine (11KW, 15KW).
4, large press machine (11KW, 15KW).
The protection level of the HF-SP/HF-JP series servo motor is IP67 (except the shaft part).
Low inertia of the power servo motor (0.5kW ~ 9kW), the maximum speed: 6000r/min (rated speed: 3000r/min),
Suitable for high frequency positioning and acceleration / deceleration operations, especially for food processing machines and printing machines.
Low inertia, high power, no cooling fan servo motor (11kW and 15kW), maximum speed: 3000r/min (rated speed: 1500r/min).
The motor structure is more compact due to the adoption of the non cooling fan design, and the connection is reduceed by using the power source connector MR-JHSCBL20M-L.
(compared with the HF-LP series servo motor with the same power, the volume is reduced by about 46%, and the weight is reduced by about 34%,
Suitable for high frequency positioning annd acceleration / deceleration operations, especially for injection molding machines and large presses MITSUBISHI MR-JHSCBL20M-L.
HF-JP703 (4) /903 (4) maximum speed: 5000r/min.
