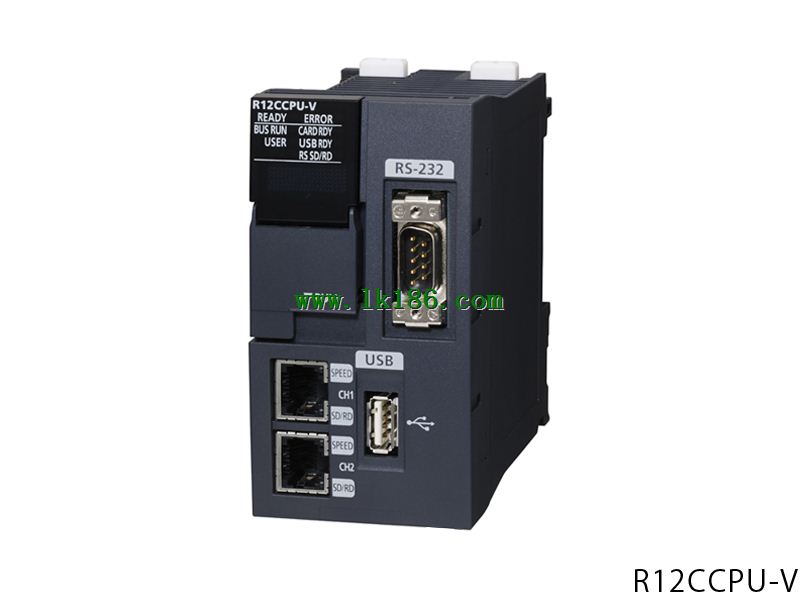

>> MITSUBISHI R12CCPU-V Moreover, the C language controller adopts a non fan structure, and does not raise dust, and is most suitable for use in a clean environment such as a micro chip factory Programmable logic controller CPU R12CCPU-V
MITSUBISHI R12CCPU-V Moreover, the C language controller adopts a non fan structure, and does not raise dust, and is most suitable for use in a clean environment such as a micro chip factory Programmable logic controller CPU R12CCPU-V
Brand:
MITSUBISHI
Name: C language controller module
Model: R12CCPU-V
Memory capacity: 256MB.
As one of the specific features of the iQ-R CPU series MELSEC module, the new C language controller module is added.
C language ARM developed a multi-core controller can perform multiple programs simultaneously based on.
In addition, both the robustness and timing of the C language controller can also be used as a substitute for computer / computer platform.
Moreover, the C language controller adopts a non fan structure, and does not raise dust, and is most suitable for use in a clean environment such as a micro chip factory.
Play iQ-R MELSEC series of high performance, flexible, strong characteristics, can be used in a variety of industrial applications to achieve automation.
Can be simple to use 3 kinds of tool software.
C language controller has been installed in a variety of drivers embedded real-time OS. Various modules can be easily accessed through a special function,
No need to develop the driver and install new OS, through a special function to access a variety of modules,
Can be simple to deploy, reduced cost of development.
You can use CW Workbench and CW Configurator (software) (setting and monitoring tools) and CW-Sim (simulation tool VxWorks.),
Provide strong support for C language program development.
Can be easily programmed, no restrictions on the microprocessor.
By using the C language controller module specific function (CCPU function), MELSEC communication function (MD function),
Can easily access the C language controller module, I/O module, intelligent function module, network module, programmable controller CPU and sports CPU, etc.,
Create an application that uses a programmable controller device.
Configurator CW can be used for parameter setting, diagnosis and monitoring.
Using Configurator CW,
The iQ-R/Q MELSEC series module (network module, intelligent function module, input and output module, etc.) can be easily set, diagnosis, monitor and test by the C language controller module.
The operation of Configurator CW is similar to that of iQ-R MELSEC programming software Works3 GX.
