NZ2MC-1MBS MITSUBISHI NZ2MC-1MBS Programmable logic controller CPU

Operation control mode: stored procedure repeated operation.
Input / output points: 4096 points.
Program capacity: 1200K.
As the core of the programmable controller control system, programmable controller CPU module has been equipped with a variety of functions,
Support multiple controls. Program capacity from the 40K step to the 1200K step, to select the most suitable system size of the CPU module MITSUBISHI NZ2MC-1MBS NZ2MC-1MBS
And the CPU module can be directly connected to the industrial network, which can reduce the construction cost of the system.
Soft element / label area for easy processing
The extended SRAM card is installed on the programmable controller CPU module,
Soft element / label storage area with up to 5786K words MITSUBISHI NZ2MC-1MBS.
The expansion area is connected to the memory of the built-in CPU module,
The range of soft components / labels can be freely distributed.
Therefore, it can be easily programmed without taking into account the boundaries of each storage area.
In addition, can also use the SD memory card processing records data, database data, such as large capacity data. Axis of control: 16.
Operation cycle: 0 MITSUBISHI NZ2MC-1MBS. 444ms, 0.888ms, 1.777ms, 3.555ms.
Control unit: mm, inch, degree, pulse.
Location data: 600 data / axis.
Boot time (operation cycle 0.444ms, 1 axes): 0.7ms.
Servo amplifier connection mode: SSCNET III /H.
Inter station distance (max): 100m.
External wiring connection: 40 pin connector two MITSUBISHI Programmable logic controller CPU.
Straight line interpolation: 2 axis, 3 axis, 4 axis.
Arc interpolation: 2 axes.
Advanced synchronization control MITSUBISHI Programmable logic controller CPU.
In addition to the use of software instead of gear, shaft, gear, cam and other mechanical mechanism of synchronous control,
Can also realize the cam control and clutch, cam automatic generation and other functions.
The shaft can be used as a unit to start and stop the synchronization control, therefore, the synchronous control shaft and the positioning control shaft can be mixed MITSUBISHI Programmable logic controller CPU.
And the positioning module is the same, simple movement module can be set up simple parameters and through the control program to start,
Easy positioning control, advanced synchronous control, cam control, speed / torque control, and other motion control.
According to the user''s control requirements, from the maximum number of control axis to 2 axis, 4 axis, 8 axis, 16 axis type in the choice of the most suitable module.
Positioning control (sealant / adhesive coating equipment etc.).
Synchronous control / electronic cam control (pick and place machine, packing machine, etc.).
Speed / torque control (stamping machine, die casting machine, etc.).
Speed / position control switching (production of semiconductor chips, etc.).

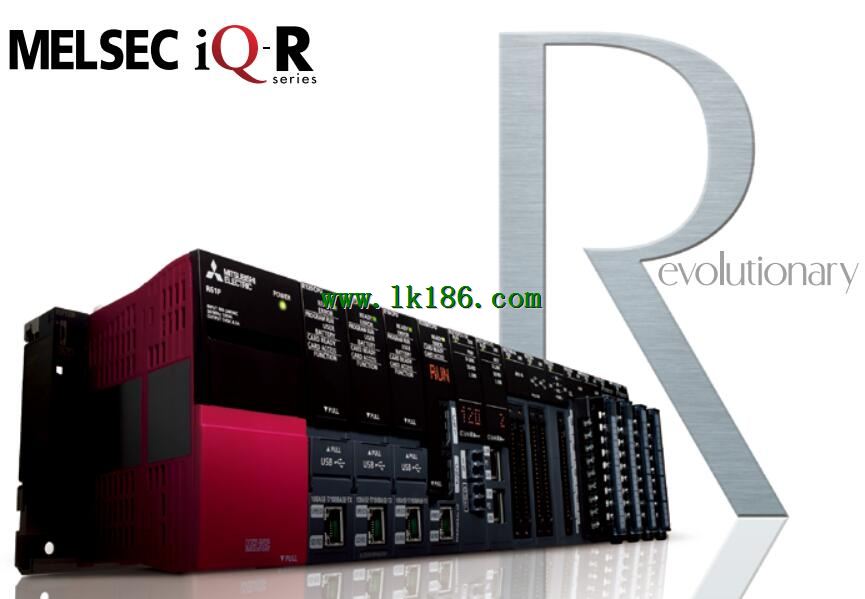

IQ-R MELSEC series of simple movement module, positioning module, high-speed counter module for intelligent function module,
High speed and high precision motion control, position control and position detection can be carried out by simple programming.
The simple motion module has the same operation convenience as the positioning module,
Like motion controller for synchronous control, cam control and other advanced control.
Can be connected to thee servo system dedicated to support high-speed synchronous network /H III SSCNET servo amplifier NZ2MC-1MBS.
Motion control by simple programming.
Can be realized through the software gear, shaft, transmission, cam action.
The most suitabble for milling spiral line interpolation MITSUBISHI NZ2MC-1MBS.
Normal start, high speed start, multi axis simultaneous start.
High precision ON/OFF pulse time measurement.
