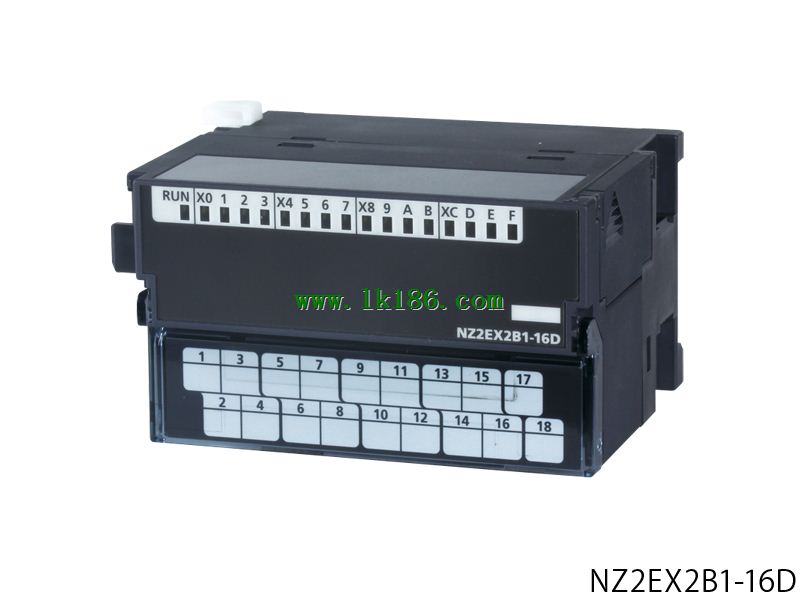

>> NZ2EX2B1-16D Safety relay module MITSUBISHI NZ2EX2B1-16D Input type: DC input, the common cathode / negative public end sharing
NZ2EX2B1-16D Safety relay module MITSUBISHI NZ2EX2B1-16D Input type: DC input, the common cathode / negative public end sharing
Brand:
MITSUBISHI
Name: Extended DC input module for modular remote module
Model: NZ2EX2B1-16D
Type: 18 point terminal.
Input type: DC input, the common cathode / negative public end sharing.
Input points: 16 points.
Rated input voltage / current: DC24V (6mA).
External connection: 1 wire.
Can be on the remote /O I module, analog module, high-speed counter module free extension of input and output points.
The analog input module can be extended, and the sampling time of the analog and digital conversion values can be controlled by the external input signal. (trigger conversion function)
Scalable high-speed counter module, ON/OFF control in the implementation of accurate cycle. (cam switching function)
IE CC-Link field network remote equipment station. According to the equipment, more easily distributed input and output devices.
Can be connected to the expansion module, more convenient to expand the input and output points.
Support synchronous communication (using with simple motion control module).
According to the simple motion control module of the network (Master) control cycle of the implementation of the control cycle and its synchronization,
Implementation of multiple simultaneous action from the station.
