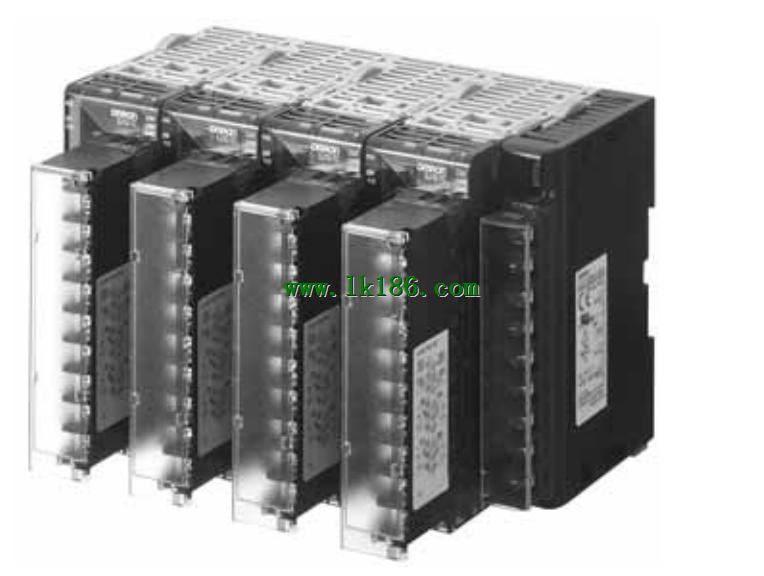

>> OMRON EJ1G-TC4B-QQ Connect directly to the G3ZA Multi-channel Power Controller, Modular Temperature Controller for Gradient Temperature Control EJ1G-TC4B-QQ
OMRON EJ1G-TC4B-QQ Connect directly to the G3ZA Multi-channel Power Controller, Modular Temperature Controller for Gradient Temperature Control EJ1G-TC4B-QQ
Brand:
OMRON
Name: Modular Temperature Controller for Gradient Temperature Control
Model: EJ1G-TC4B-QQ
Name: Basic Unit(gradient temperature control)(See note 1.).
Power supply voltage: 24 VDC supplied from the End Unit.
No. of control points: 4.
Control outputs 1 and 2: Voltage output: 2 points (for SSR drive)(See note 2.).
Control outputs 3 and 4: Voltage output: 2 points (for SSR drive) (See note 2.).
Auxiliary output: None.
Functions: Heater burnout alarm, None; Event inputs, None.
Communications functions: G3ZA connection port,
RS-485 From End Unit, Port A, RS-485.
Input type: Thermocouple, platinum resistance thermometer,
analog voltage, and analog current selectable for each channel.
Terminal: Screw-less clamp.
Gradient Temperature Control to Achieve.
Consistent Layer Temperature.
Perform gradient temperature control ranging from 2 to 32 channels.
Perform 2-channel gradient temperature control for up to 16,
groups, or 32-channel gradient temperature control for up to 2 groups.
Set gradient temperature control or 2-PID control for each group.
Reduce design work for ladder programming with programless,
connections to Programmable Controllers. (The same feature,
as Standard-control EJ1 Models.).
Connect directly to the G3ZA Multi-channel Power Controller,
using optimum cycle control for high-accuracy control with minimal noise.
