>> PFXLM4201TADAK Integrated control function of programmable human computer interface Proface PFXLM4201TADAK Resolution: 320 x 240 pixels (QVGA)
PFXLM4201TADAK Integrated control function of programmable human computer interface Proface PFXLM4201TADAK Resolution: 320 x 240 pixels (QVGA)
Brand:
Proface
Name: Integrated control function of programmable human computer interface
Model: PFXLM4201TADAK
Analog /NPN output type.
Display size: 3.5 inches.
Resolution: 320 x 240 pixels (QVGA).
LCD:TFT.
Color: 65536 color.
Ethernet interface: 1.
Serial port: 1.
CANopen interface: 1.
USB (host):1.
USB (equipment):1.
Built in DIO input: 12 points.
Built in DIO output: 6 points.
Built in AIO input: 4 points.
Built in AIO output: 2 points.
Common DIO:2 point high speed counter (with synchronous output) pulse capture input.
Dedicated DIO:2 point pulse output, PWM output.
Expansion module EX module: none.
Expansion module CANopen module: 63 stations.
Controller memory size: EPROM 132KB FLASH (equivalent to 15000 steps (up to 60000 steps).
Flexible installation.

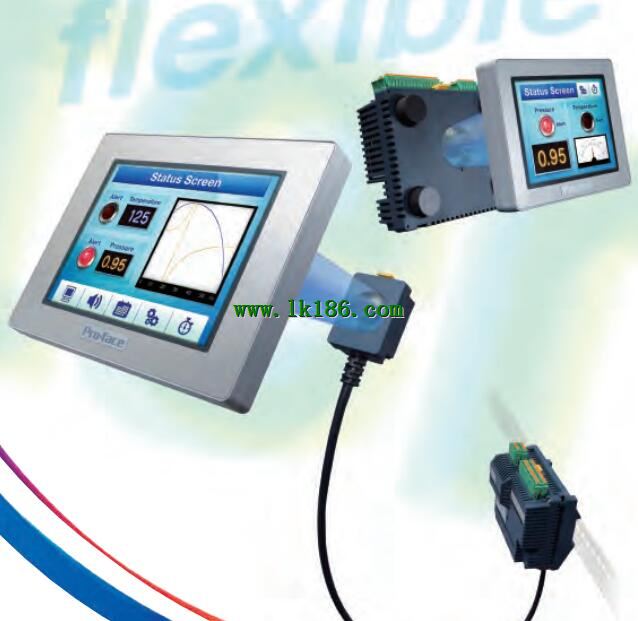

The control module can be installed on the DIN guide rail by using the split installation cable,
And the display module is installed in other locations.
Display module occupies a small space, even if the space is limited, but also can be flexible to install.
Connect various control devices.
Pro-face human machine interface can be connected to a variety of industrial controllers, including PLC, motion controller, robot and other equipment.
Remote HMI Pro-face.
Natural connection production line and tablet PC or smart phone. By adding APP,
True implementation of mobile operations without loss of any operational performance.
Directly confirm the cause of the failure of the phone, as far as possible not to the scene on the recovery of the machine running.
CANopen network
LT4000M supports data exchange with a variety of remote devices through the CANopen, easy to achieve economic and easy to use system design.
Can choose standard I/O module, also can choose action or control module and other more advanced products in complex application.
Use EX GP-Pro to easily test and debug the project.
EX GP-Pro simulation is a kind of offline simulation function, with the help of this function,
No need to connect the man-machine interface, you can test the operation of the screen and the logic program.
Compact size.
The volume is small but the display is fresh and bright, can create a rich and readable operation picture.
The control function of the whole and the digital I/O, analog I/O, analog temperature input and USB, serial port and Ethernet communication interface.
Integrated design.
Adopt integrative design, compact structure,
When the installation is only required to open a hole in the panel 22mm.
The display module or the control module can be easily replaced when the fault is eliminated.
...More relevant models >>>>
Name: Integrated control function of programmable human computer interface
Model: PFXLM4201TADAK
Analog /NPN output type.
Display size: 3.5 inches.
Resolution: 320 x 240 pixels (QVGA).
LCD:TFT.
Color: 65536 color.
Ethernet interface: 1.
Serial port: 1.
CANopen interface: 1.
USB (host):1.
USB (equipment):1.
Built in DIO input: 12 points.
Built in DIO output: 6 points.
Built in AIO input: 4 points.
Built in AIO output: 2 points.
Common DIO:2 point high speed counter (with synchronous output) pulse capture input.
Dedicated DIO:2 point pulse output, PWM output.
Expansion module EX module: none.
Expansion module CANopen module: 63 stations.
Controller memory size: EPROM 132KB FLASH (equivalent to 15000 steps (up to 60000 steps).
Flexible installation.
The control module can be installed on the DIN guide rail by using the split installation cable,
And the display module is installed in other locations.
Display module occupies a small space, even if the space is limited, but also can be flexible to install.
Connect various control devices.
Pro-face human machine interface can be connected to a variety of industrial controllers, including PLC, motion controller, robot and other equipment.
Remote HMI Pro-face.
Natural connection production line and tablet PC or smart phone. By adding APP,
True implementation of mobile operations without loss of any operational performance.
Directly confirm the cause of the failure of the phone, as far as possible not to the scene on the recovery of the machine running.
CANopen network
LT4000M supports data exchange with a variety of remote devices through the CANopen, easy to achieve economic and easy to use system design.
Can choose standard I/O module, also can choose action or control module and other more advanced products in complex application.
Use EX GP-Pro to easily test and debug the project.
EX GP-Pro simulation is a kind of offline simulation function, with the help of this function,
No need to connect the man-machine interface, you can test the operation of the screen and the logic program.
Compact size.
The volume is small but the display is fresh and bright, can create a rich and readable operation picture.
The control function of the whole and the digital I/O, analog I/O, analog temperature input and USB, serial port and Ethernet communication interface.
Integrated design.
Adopt integrative design, compact structure,
When the installation is only required to open a hole in the panel 22mm.
The display module or the control module can be easily replaced when the fault is eliminated.
Input voltage: DC24V.
Screen size: 10.4 inches.
Display type (resolution):65536 color TFT display LCD (VGA 640 x 480 pixels).
Touch panel type: analog resistance.
Memory: 32MB (internal memory), SRAM320KB (backup memory), SRAM64KB (variable area).
Ethernet interface: 1.
Serial port: RS-232C * 1, RS-422/485 * 1 Proface PFXLM4201TADAK.
SD card slot (max 32GB):1.
USB interface: Type-A x (2) USB 1, Mini-B USB (2) x 1 PFXLM4201TADAK
Replaceable battery: yes.
Alarm analysis function block: yes.
Panel opening size:
Wide 259 x high 201mm (+1/0mm)
Panel thickness: 1.6-5mm, chamfer radius is less than R3.
Serial isolation models: there.
Meet a number of standards to support a wide range of applications
The coating components are widely used in various working environments, and are in line with the international standards Proface PFXLM4201TADAK.
Remote data acquisition and management.
Human machine interface, which is installed on the production machine,
With EX Microsoft software combined with Office Pro-Server and SQL and other standard PC software,
Can be simple and economical to establish a set of data management system, and effectively improve the quality of production and efficiency Proface PFXLM4201TADAK. Screen size: 10.4 inches.
Display type: TFT color LCD.
Display color: 256 color (no flash) /64 color (3 speed flicker).
Backlight: CCFL (service life: more than 50000 hours, 24 hours of continuous work).
Resolution: 640 x 480 pixels.
Brightness control: 4 level adjustment can be carried out by touch panel.
Voltage: AC220V.
Internal memory: FLASH EPROM 4MB Proface Integrated control function of programmable human computer interface.
Backup memory: 256KB SRAM.
Interface: Ethernet, CF card Proface Integrated control function of programmable human computer interface. Input voltage: DC24V.
Screen size: 5.7 inches.
Display type (resolution):65536 color TFT display LCD (QVGA 320 x 240 pixels).
Touch panel type: analog resistance.
Memory: 16MB (internal memory), SRAM320KB (backup memory), SRAM64KB (variable area).
Ethernet interface: 1.
Serial port: RS-232C * 1, RS-422/485 * 1 Proface Integrated control function of programmable human computer interface.
SD card slot (max 32GB):1.
USB interface: Type-A x (2) USB 1, Mini-B USB (2) x 1.
Replaceable battery: yes.
Alarm analysis function block: yes.
Panel opening size:
Wide 118.5 x high 92.5mm (+1/0mm).
Panel thickness: 1.6-5mm, chamfer radius is less than R3.
Coating models: there.
Simplify troubleshooting.
Using alarm analyssis function, can grasp the cause of the fault in time PFXLM4201TADAK.
Just a few clicks, you can set the alarm analysis screen,
Analysis of the status data of the register related to the alarm.
Remote monitoring and control.
Using remote moonitoring software EX GP-Viewer,
Can be from a running PC system Windows remote monitoring of the production scene of the man-machine interface screen Proface PFXLM4201TADAK.
Screen size: 10.4 inches.
Display type (resolution):65536 color TFT display LCD (VGA 640 x 480 pixels).
Touch panel type: analog resistance.
Memory: 32MB (internal memory), SRAM320KB (backup memory), SRAM64KB (variable area).
Ethernet interface: 1.
Serial port: RS-232C * 1, RS-422/485 * 1 Proface PFXLM4201TADAK.
SD card slot (max 32GB):1.
USB interface: Type-A x (2) USB 1, Mini-B USB (2) x 1 PFXLM4201TADAK
Replaceable battery: yes.
Alarm analysis function block: yes.
Panel opening size:
Wide 259 x high 201mm (+1/0mm)
Panel thickness: 1.6-5mm, chamfer radius is less than R3.
Serial isolation models: there.
Meet a number of standards to support a wide range of applications
The coating components are widely used in various working environments, and are in line with the international standards Proface PFXLM4201TADAK.
Remote data acquisition and management.
Human machine interface, which is installed on the production machine,
With EX Microsoft software combined with Office Pro-Server and SQL and other standard PC software,
Can be simple and economical to establish a set of data management system, and effectively improve the quality of production and efficiency Proface PFXLM4201TADAK. Screen size: 10.4 inches.
Display type: TFT color LCD.
Display color: 256 color (no flash) /64 color (3 speed flicker).
Backlight: CCFL (service life: more than 50000 hours, 24 hours of continuous work).
Resolution: 640 x 480 pixels.
Brightness control: 4 level adjustment can be carried out by touch panel.
Voltage: AC220V.
Internal memory: FLASH EPROM 4MB Proface Integrated control function of programmable human computer interface.
Backup memory: 256KB SRAM.
Interface: Ethernet, CF card Proface Integrated control function of programmable human computer interface. Input voltage: DC24V.
Screen size: 5.7 inches.
Display type (resolution):65536 color TFT display LCD (QVGA 320 x 240 pixels).
Touch panel type: analog resistance.
Memory: 16MB (internal memory), SRAM320KB (backup memory), SRAM64KB (variable area).
Ethernet interface: 1.
Serial port: RS-232C * 1, RS-422/485 * 1 Proface Integrated control function of programmable human computer interface.
SD card slot (max 32GB):1.
USB interface: Type-A x (2) USB 1, Mini-B USB (2) x 1.
Replaceable battery: yes.
Alarm analysis function block: yes.
Panel opening size:
Wide 118.5 x high 92.5mm (+1/0mm).
Panel thickness: 1.6-5mm, chamfer radius is less than R3.
Coating models: there.
Simplify troubleshooting.
Using alarm analyssis function, can grasp the cause of the fault in time PFXLM4201TADAK.
Just a few clicks, you can set the alarm analysis screen,
Analysis of the status data of the register related to the alarm.
Remote monitoring and control.
Using remote moonitoring software EX GP-Viewer,
Can be from a running PC system Windows remote monitoring of the production scene of the man-machine interface screen Proface PFXLM4201TADAK.
