>> PFXLM4201TADDK Proface PFXLM4201TADDK Integrated control function of programmable human computer interface
PFXLM4201TADDK Proface PFXLM4201TADDK Integrated control function of programmable human computer interface
Brand:
Proface
Name: Integrated control function of programmable human computer interface
Model: PFXLM4201TADDK
DIO model /NPN output type.
Display size: 3.5 inches.
Resolution: 320 x 240 pixels (QVGA).
LCD:TFT.
Color: 65536 color.
Ethernet interface: 1.
Serial port: 1.
CANopen interface: 1.
USB (host):1.
USB (equipment):1.
Built in DIO input: 20 points.
Built in DIO output: 10 points.
Built in AIO input: No.
Built in AIO output: No.
Common DIO:2 point high speed counter (with synchronous output) pulse capture input.
Dedicated DIO:2 point pulse output, PWM output.
Expansion module EX module: none.
Expansion module CANopen module: 63 stations.
Controller memory size: EPROM 132KB FLASH (equivalent to 15000 steps (up to 60000 steps).
Compact size.
The volume is small but the display is fresh and bright, can create a rich and readable operation picture.
The control function of the whole and the digital I/O, analog I/O, analog temperature input and USB, serial port and Ethernet communication interface.
Integrated design.
Adopt integrative design, compact structure,
When the installation is only required to open a hole in the panel 22mm.
The display module or the control module can be easily replaced when the fault is eliminated.
Flexible installation.

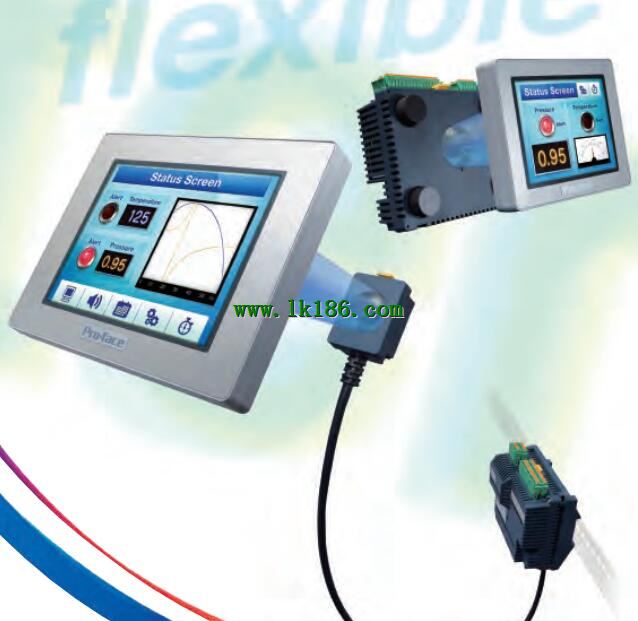

The control module can be installed on the DIN guide rail by using the split installation cable,
And the display module is installed in other locations.
Display module occupies a small space, even if the space is limited, but also can be flexible to install.
Connect various control devices.
Pro-face human machine interface can be connected to a variety of industrial controllers, including PLC, motion controller, robot and other equipment.
Remote HMI Pro-face.
Natural connection production line and tablet PC or smart phone. By adding APP,
True implementation of mobile operations without loss of any operational performance.
Directly confirm the cause of the failure of the phone, as far as possible not to the scene on the recovery of the machine running.
CANopen network
LT4000M supports data exchange with a variety of remote devices through the CANopen, easy to achieve economic and easy to use system design.
Can choose standard I/O module, also can choose action or control module and other more advanced products in complex application.
...More relevant models >>>>
Name: Integrated control function of programmable human computer interface
Model: PFXLM4201TADDK
DIO model /NPN output type.
Display size: 3.5 inches.
Resolution: 320 x 240 pixels (QVGA).
LCD:TFT.
Color: 65536 color.
Ethernet interface: 1.
Serial port: 1.
CANopen interface: 1.
USB (host):1.
USB (equipment):1.
Built in DIO input: 20 points.
Built in DIO output: 10 points.
Built in AIO input: No.
Built in AIO output: No.
Common DIO:2 point high speed counter (with synchronous output) pulse capture input.
Dedicated DIO:2 point pulse output, PWM output.
Expansion module EX module: none.
Expansion module CANopen module: 63 stations.
Controller memory size: EPROM 132KB FLASH (equivalent to 15000 steps (up to 60000 steps).
Compact size.
The volume is small but the display is fresh and bright, can create a rich and readable operation picture.
The control function of the whole and the digital I/O, analog I/O, analog temperature input and USB, serial port and Ethernet communication interface.
Integrated design.
Adopt integrative design, compact structure,
When the installation is only required to open a hole in the panel 22mm.
The display module or the control module can be easily replaced when the fault is eliminated.
Flexible installation.
The control module can be installed on the DIN guide rail by using the split installation cable,
And the display module is installed in other locations.
Display module occupies a small space, even if the space is limited, but also can be flexible to install.
Connect various control devices.
Pro-face human machine interface can be connected to a variety of industrial controllers, including PLC, motion controller, robot and other equipment.
Remote HMI Pro-face.
Natural connection production line and tablet PC or smart phone. By adding APP,
True implementation of mobile operations without loss of any operational performance.
Directly confirm the cause of the failure of the phone, as far as possible not to the scene on the recovery of the machine running.
CANopen network
LT4000M supports data exchange with a variety of remote devices through the CANopen, easy to achieve economic and easy to use system design.
Can choose standard I/O module, also can choose action or control module and other more advanced products in complex application.
Display size: 5.7 inches.
Display type: STN pseudo color LCD.
Display color: 64 color.
Resolution: 320 x 240 pixels.
Input voltage: DC24V.
Control memory: EPROM 1MB FLASH.
Program area: 128KB.
Variable area: 32KB.
Interface: built-in DIO 32 points (16 point input /16 point output, NPN type). "Modular Proface PFXLM4201TADDK.
Input voltage: DC24V.
Screen size: 3.5 inches.
Display type (resolution):65536 color TFT display LCD (QVGA 320 x 240 pixels) PFXLM4201TADDK
Touch panel type: analog resistance.
Memory: 8MB (internal memory), nvSRAM128KB (non-volatile, no battery).
Ethernet interface: 1.
Serial port: RS-232C * 1, RS-422/485 * 1.
SD card slot (max 32GB): No.
USB interface: Type-A x (2) USB 1, Mini-B USB (2) x 1.
Replaceable battery: no (rechargeable battery) Proface PFXLM4201TADDK.
Alarm analysis function block: No.
Coating models: none.
The use of drag and drop operations, can be easily shared between the man-machine interface and the control program of the symbolic register data,
Make the programming process intuitive and efficient.
In addition, the common and special control function is defined as the function block, which simplifies the design of the control system Proface PFXLM4201TADDK.
The man-machine interface picture is directly connected with the control program, which can realize the efficient programming.
6 Display Module 2 host module, can realize the 12 kinds of "intelligent platform".
Modular design, display module and the host module can be split,
Therefore can be replaced respectively.
Display module and host module free combination, function and size of flexible Proface Integrated control function of programmable human computer interface. "Input voltage: AC100~240V Proface Integrated control function of programmable human computer interface.
Screen size: 12.1 inches.
Display type (resolution):65536 color TFT display LCD (SVGA 800 x 600 pixels).
Touch panel type: analog resistance.
Memory: 32MB (internal memory), SRAM320KB (backup memory), SRAM64KB (variable area).
Ethernet interface: 1.
Serial port: RS-232C * 1, RS-422/485 * 1 Proface Integrated control function of programmable human computer interface.
SD card slot (max 32GB):1.
USB interface: Type-A x (2) USB 1, Mini-B USB (2) x 1.
Replaceable battery: yes.
Alarm analysis function block: yes.
Panel opening size:
Wide 301.5 x high 227.5mm (+1/0mm).
Panel thickness: 1.6-5mm, chamfer radius is less than R3.
Enhance the display effect.
All models are using 65535 color LCD TFT, and has the high brightness controll function of the backlight PFXLM4201TADDK.
Exquisite picture not only improves the quality of monitoring, but also increases the safety of operation.
Mobile terminal remote monitoring.
With light and portable iPhone, iPad, touch iPod and otther mobile terminal remote monitoring of large or long distance applications, large-scale processing system or production site of a number of machines Proface PFXLM4201TADDK.
Display type: STN pseudo color LCD.
Display color: 64 color.
Resolution: 320 x 240 pixels.
Input voltage: DC24V.
Control memory: EPROM 1MB FLASH.
Program area: 128KB.
Variable area: 32KB.
Interface: built-in DIO 32 points (16 point input /16 point output, NPN type). "Modular Proface PFXLM4201TADDK.
Input voltage: DC24V.
Screen size: 3.5 inches.
Display type (resolution):65536 color TFT display LCD (QVGA 320 x 240 pixels) PFXLM4201TADDK
Touch panel type: analog resistance.
Memory: 8MB (internal memory), nvSRAM128KB (non-volatile, no battery).
Ethernet interface: 1.
Serial port: RS-232C * 1, RS-422/485 * 1.
SD card slot (max 32GB): No.
USB interface: Type-A x (2) USB 1, Mini-B USB (2) x 1.
Replaceable battery: no (rechargeable battery) Proface PFXLM4201TADDK.
Alarm analysis function block: No.
Coating models: none.
The use of drag and drop operations, can be easily shared between the man-machine interface and the control program of the symbolic register data,
Make the programming process intuitive and efficient.
In addition, the common and special control function is defined as the function block, which simplifies the design of the control system Proface PFXLM4201TADDK.
The man-machine interface picture is directly connected with the control program, which can realize the efficient programming.
6 Display Module 2 host module, can realize the 12 kinds of "intelligent platform".
Modular design, display module and the host module can be split,
Therefore can be replaced respectively.
Display module and host module free combination, function and size of flexible Proface Integrated control function of programmable human computer interface. "Input voltage: AC100~240V Proface Integrated control function of programmable human computer interface.
Screen size: 12.1 inches.
Display type (resolution):65536 color TFT display LCD (SVGA 800 x 600 pixels).
Touch panel type: analog resistance.
Memory: 32MB (internal memory), SRAM320KB (backup memory), SRAM64KB (variable area).
Ethernet interface: 1.
Serial port: RS-232C * 1, RS-422/485 * 1 Proface Integrated control function of programmable human computer interface.
SD card slot (max 32GB):1.
USB interface: Type-A x (2) USB 1, Mini-B USB (2) x 1.
Replaceable battery: yes.
Alarm analysis function block: yes.
Panel opening size:
Wide 301.5 x high 227.5mm (+1/0mm).
Panel thickness: 1.6-5mm, chamfer radius is less than R3.
Enhance the display effect.
All models are using 65535 color LCD TFT, and has the high brightness controll function of the backlight PFXLM4201TADDK.
Exquisite picture not only improves the quality of monitoring, but also increases the safety of operation.
Mobile terminal remote monitoring.
With light and portable iPhone, iPad, touch iPod and otther mobile terminal remote monitoring of large or long distance applications, large-scale processing system or production site of a number of machines Proface PFXLM4201TADDK.
