>> PFXLM4301TADDK Integrated control function of programmable human computer interface Proface PFXLM4301TADDK
PFXLM4301TADDK Integrated control function of programmable human computer interface Proface PFXLM4301TADDK
Brand:
Proface
Name: Integrated control function of programmable human computer interface
Model: PFXLM4301TADDK
DIO model /NPN output type.
Display size: 5.7 inches.
Resolution: 320 x 240 pixels (QVGA).
LCD:TFT.
Color: 65536 color.
Ethernet interface: 1.
Serial port: 1.
CANopen interface: 1.
USB (host):1.
USB (equipment):1.
Built in DIO input: 20 points.
Built in DIO output: 10 points.
Built in AIO input: No.
Built in AIO output: No.
Common DIO:2 point high speed counter (with synchronous output) pulse capture input.
Dedicated DIO:2 point pulse output, PWM output.
Expansion module EX module: none.
Expansion module CANopen module: 63 stations.
Controller memory size: EPROM 132KB FLASH (equivalent to 15000 steps (up to 60000 steps).
Flexible installation.

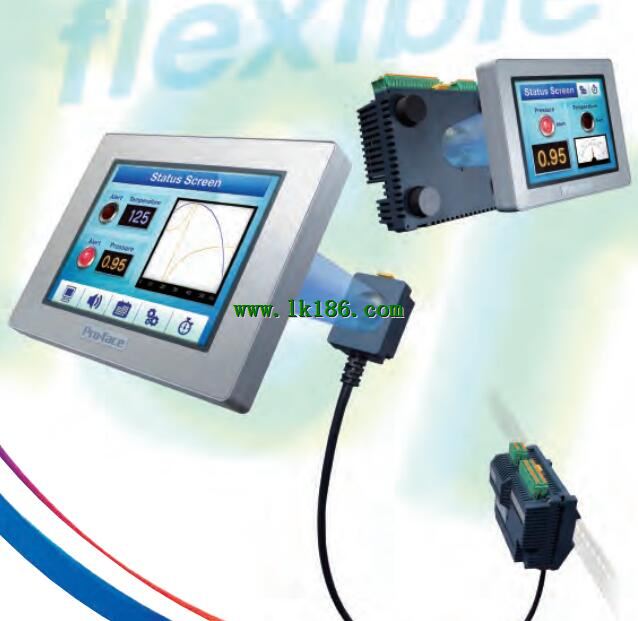

The control module can be installed on the DIN guide rail by using the split installation cable,
And the display module is installed in other locations.
Display module occupies a small space, even if the space is limited, but also can be flexible to install.
Compact size.
The volume is small but the display is fresh and bright, can create a rich and readable operation picture.
The control function of the whole and the digital I/O, analog I/O, analog temperature input and USB, serial port and Ethernet communication interface.
Integrated design.
Adopt integrative design, compact structure,
When the installation is only required to open a hole in the panel 22mm.
The display module or the control module can be easily replaced when the fault is eliminated.
...More relevant models >>>>
Name: Integrated control function of programmable human computer interface
Model: PFXLM4301TADDK
DIO model /NPN output type.
Display size: 5.7 inches.
Resolution: 320 x 240 pixels (QVGA).
LCD:TFT.
Color: 65536 color.
Ethernet interface: 1.
Serial port: 1.
CANopen interface: 1.
USB (host):1.
USB (equipment):1.
Built in DIO input: 20 points.
Built in DIO output: 10 points.
Built in AIO input: No.
Built in AIO output: No.
Common DIO:2 point high speed counter (with synchronous output) pulse capture input.
Dedicated DIO:2 point pulse output, PWM output.
Expansion module EX module: none.
Expansion module CANopen module: 63 stations.
Controller memory size: EPROM 132KB FLASH (equivalent to 15000 steps (up to 60000 steps).
Flexible installation.
The control module can be installed on the DIN guide rail by using the split installation cable,
And the display module is installed in other locations.
Display module occupies a small space, even if the space is limited, but also can be flexible to install.
Compact size.
The volume is small but the display is fresh and bright, can create a rich and readable operation picture.
The control function of the whole and the digital I/O, analog I/O, analog temperature input and USB, serial port and Ethernet communication interface.
Integrated design.
Adopt integrative design, compact structure,
When the installation is only required to open a hole in the panel 22mm.
The display module or the control module can be easily replaced when the fault is eliminated.
Input voltage: DC24V.
Screen size: 10.4 inches.
Display type (resolution):65536 color TFT display LCD (VGA 640 x 480 pixels).
Touch panel type: analog resistance.
Memory: 32MB (internal memory), SRAM320KB (backup memory), SRAM64KB (variable area).
Ethernet interface: 1.
Serial port: RS-232C * 1, RS-422/485 * 1 Proface PFXLM4301TADDK.
SD card slot (max 32GB):1.
USB interface: Type-A x (2) USB 1, Mini-B USB (2) x 1 PFXLM4301TADDK
Replaceable battery: yes.
Alarm analysis function block: yes.
Panel opening size:
Wide 259 x high 201mm (+1/0mm)
Panel thickness: 1.6-5mm, chamfer radius is less than R3.
Serial isolation models: there.
Meet a number of standards to support a wide range of applications
The coating components are widely used in various working environments, and are in line with the international standards Proface PFXLM4301TADDK.
Remote data acquisition and management.
Human machine interface, which is installed on the production machine,
With EX Microsoft software combined with Office Pro-Server and SQL and other standard PC software,
Can be simple and economical to establish a set of data management system, and effectively improve the quality of production and efficiency Proface PFXLM4301TADDK. Input voltage: AC100~240V.
Screen size: 12.1 inches.
Display type (resolution):65536 color TFT display LCD (SVGA 800 x 600 pixels).
Touch panel type: analog resistance.
Memory: 32MB (internal memory), SRAM320KB (backup memory), SRAM64KB (variable area).
Ethernet interface: 1.
Serial port: RS-232C * 1, RS-422/485 * 1.
SD card slot (max 32GB):1 Proface Integrated control function of programmable human computer interface.
USB interface: Type-A x (2) USB 1, Mini-B USB (2) x 1 Proface Integrated control function of programmable human computer interface.
Replaceable battery: yes.
Alarm analysis function block: yes.
Panel opening size:
Wide 301.5 x high 227.5mm (+1/0mm).
Panel thickness: 1.6-5mm, chamfer radius is less than R3.
Enhance the display effect.
All models are using 65535 color LCD TFT, and has the high brightness control function of the backlight Proface Integrated control function of programmable human computer interface.
Exquisite picture not only improves the quality of monitoring, but also increases the safety of operation.
Mobile terminal remote monitoring.
With light and portable iPhone, iPad, touch iPod and other mobile terminal remote monitoring of large or long distance applications, large-scale processing system or production site of a number of machines.Controller DIO (NPN model):6 point type NPN input, 2 point NPN type output, connector: 12 pin.
Specification: DC24/C (control) level models.
Display type: TFT color LCD (Gao Liangdu).
Display size: 12.1 inches.
Resolution: 800 x 600 pixels (SVGA).
Display color: 65536 color (no flash) /16384 color (3 speed flicker).
Brightness adjustment: 8 level adjustment can be carried out by touch panel.
Variable area: 64KB SRAM (using lithium battery).
Program area: EPROM 132KB FLASH.
Step number: equivalent to 15000 steps.
Touch panel type: resistance type (analog).
Rich sample images can reduce programming time.
Pro-face provides a large number of sample images and 3D parts,
So you can easily create a beautiful and intuitive picture, in order to save editing time.
Can improve the efficiency of the 5 functions.
Using EX GP-Pro can easily create a clear picture and save the creation time.
Screen and logic programming software EX GP-Pro interface is very friendly,
The drag and drop feature makes the software interface easy to operate.
EX GPP-Pro powerful features, such as 3D simulation components, image fonts and simulation functions,
Even beginners can easily and quickly grasp how to create a picture PFXLM4301TADDK.
Simulated running status on PC.
Use PC simulation function, do not need to transfer the picture to GP,
You can check all the functions of GP on the PC - including the screen operation, D script, logical script Proface PFXLM4301TADDK.
Screen size: 10.4 inches.
Display type (resolution):65536 color TFT display LCD (VGA 640 x 480 pixels).
Touch panel type: analog resistance.
Memory: 32MB (internal memory), SRAM320KB (backup memory), SRAM64KB (variable area).
Ethernet interface: 1.
Serial port: RS-232C * 1, RS-422/485 * 1 Proface PFXLM4301TADDK.
SD card slot (max 32GB):1.
USB interface: Type-A x (2) USB 1, Mini-B USB (2) x 1 PFXLM4301TADDK
Replaceable battery: yes.
Alarm analysis function block: yes.
Panel opening size:
Wide 259 x high 201mm (+1/0mm)
Panel thickness: 1.6-5mm, chamfer radius is less than R3.
Serial isolation models: there.
Meet a number of standards to support a wide range of applications
The coating components are widely used in various working environments, and are in line with the international standards Proface PFXLM4301TADDK.
Remote data acquisition and management.
Human machine interface, which is installed on the production machine,
With EX Microsoft software combined with Office Pro-Server and SQL and other standard PC software,
Can be simple and economical to establish a set of data management system, and effectively improve the quality of production and efficiency Proface PFXLM4301TADDK. Input voltage: AC100~240V.
Screen size: 12.1 inches.
Display type (resolution):65536 color TFT display LCD (SVGA 800 x 600 pixels).
Touch panel type: analog resistance.
Memory: 32MB (internal memory), SRAM320KB (backup memory), SRAM64KB (variable area).
Ethernet interface: 1.
Serial port: RS-232C * 1, RS-422/485 * 1.
SD card slot (max 32GB):1 Proface Integrated control function of programmable human computer interface.
USB interface: Type-A x (2) USB 1, Mini-B USB (2) x 1 Proface Integrated control function of programmable human computer interface.
Replaceable battery: yes.
Alarm analysis function block: yes.
Panel opening size:
Wide 301.5 x high 227.5mm (+1/0mm).
Panel thickness: 1.6-5mm, chamfer radius is less than R3.
Enhance the display effect.
All models are using 65535 color LCD TFT, and has the high brightness control function of the backlight Proface Integrated control function of programmable human computer interface.
Exquisite picture not only improves the quality of monitoring, but also increases the safety of operation.
Mobile terminal remote monitoring.
With light and portable iPhone, iPad, touch iPod and other mobile terminal remote monitoring of large or long distance applications, large-scale processing system or production site of a number of machines.Controller DIO (NPN model):6 point type NPN input, 2 point NPN type output, connector: 12 pin.
Specification: DC24/C (control) level models.
Display type: TFT color LCD (Gao Liangdu).
Display size: 12.1 inches.
Resolution: 800 x 600 pixels (SVGA).
Display color: 65536 color (no flash) /16384 color (3 speed flicker).
Brightness adjustment: 8 level adjustment can be carried out by touch panel.
Variable area: 64KB SRAM (using lithium battery).
Program area: EPROM 132KB FLASH.
Step number: equivalent to 15000 steps.
Touch panel type: resistance type (analog).
Rich sample images can reduce programming time.
Pro-face provides a large number of sample images and 3D parts,
So you can easily create a beautiful and intuitive picture, in order to save editing time.
Can improve the efficiency of the 5 functions.
Using EX GP-Pro can easily create a clear picture and save the creation time.
Screen and logic programming software EX GP-Pro interface is very friendly,
The drag and drop feature makes the software interface easy to operate.
EX GPP-Pro powerful features, such as 3D simulation components, image fonts and simulation functions,
Even beginners can easily and quickly grasp how to create a picture PFXLM4301TADDK.
Simulated running status on PC.
Use PC simulation function, do not need to transfer the picture to GP,
You can check all the functions of GP on the PC - including the screen operation, D script, logical script Proface PFXLM4301TADDK.
