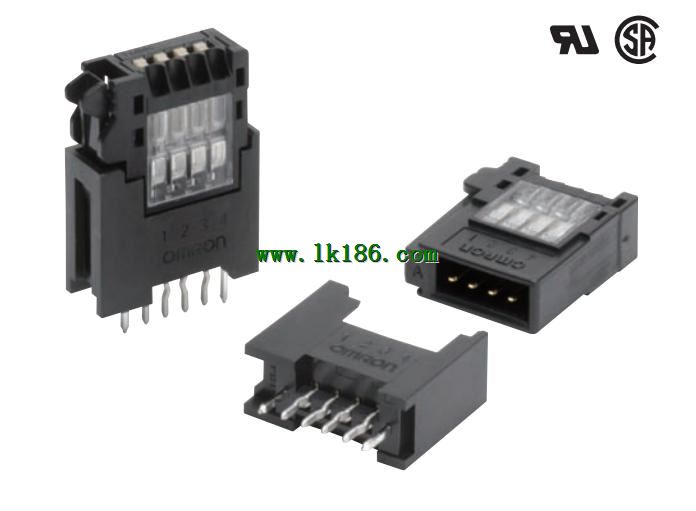

XN2D-1571 OMRON XN2D-1571 Simple wiring connector for industrial equipment
Brand:
OMRON
Name: Simple wiring connector for industrial equipment
Model: XN2D-1571
Type: single socket connector for PCB substrate.
Contact number: 5.
Wiring simple and e-CON * specifications for connectors;
Ideal choice for connecting sensors.
The connection of the spring clip which is verified by the industry is adopted.
Wiring is simple, no special tools required,
Can be re wiring (maintenance).
Acceptable range for each connector
Stranded AWG28 (0.08mm2) ~ AWG20 (0.5mm2),
Any core wire size between.
(outer diameter: no more than 1.5mm).
A clamp capable of simultaneously connecting 4 lines when a connection is also provided.
UL standard (Document No. E103202) identified as a standard product.
Cable connector with the UL standard certification of products.
"
