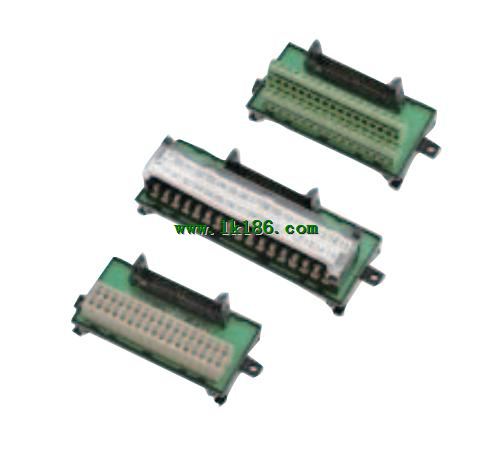

>> XW2R-J34G-C3 OMRON XW2R-J34G-C3 IO points (number of poles): 32 (34) Connector terminal station conversion unit
XW2R-J34G-C3 OMRON XW2R-J34G-C3 IO points (number of poles): 32 (34) Connector terminal station conversion unit
Brand:
OMRON
Name: Connector terminal station conversion unit
Model: XW2R-J34G-C3
Type: cross screw type.
IO points (number of poles): 32 (34).
The PLC connection type and the rich polar number of PLC are specially connected.
PLC connection type for the use of OMRON and MITSUBISHI motor,
PLC (plant) production of specialized connection wiring mode, to facilitate the confirmation signal configuration.
In addition, the terminal table record PLC address on the label.
Universal type for a variety of connectors, the number of species.
Connection with cross recessed screws, slotted screw type and insertion type.
DIN guide rail and screw can be used to install.
Terminal arrangement fully considers the maneuverability, makes the connection operation become easy and simple.
The operability of the plug-in terminal can be improved (XW2F comparison of the company).
