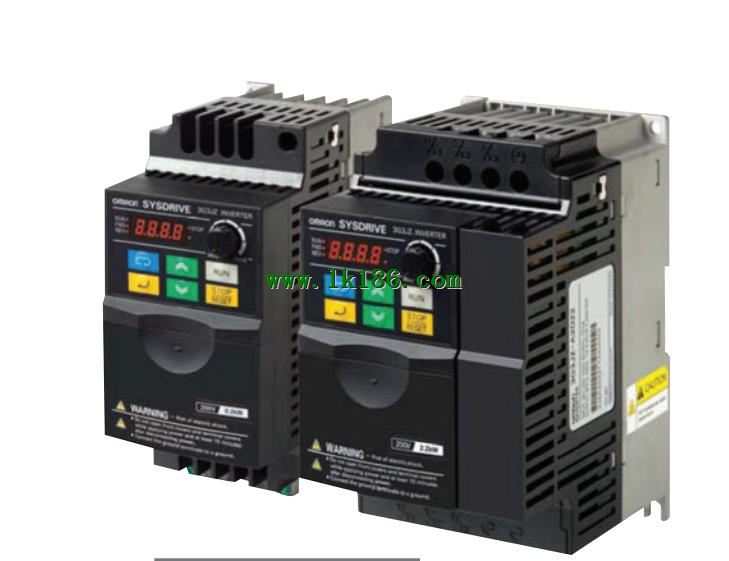

3G3JZ-AB015 OMRON 3G3JZ-AB015 Power: 075KW V/F controlled converter

OMRON V/F controlled converter3G3JZ-AB015

Brand: OMRON
Name: V/F controlled converter
Model: 3G3JZ-AB015
Function name: single phase 200V.
Power: 1.5KW.
Maximum output voltage: three phase 200 ~ 240VAC (corresponding input voltage).
Rated voltage, frequency: single phase power supply 200 ~ 50/60Hz, 240V.
Cooling: forced cooling.
Weight: 1.9kg.
Simple but not simple, casual and not casual.
Homogenization of today, the quality of the subtle show.
Standard configuration has RS485 interface, Modbus bus communication function.
3Hz provides more than 150% torque output.
2-15kHz carrier frequency, can achieve mute driver.
Equipped with simple energy saving function.
Compact size and uniform, and can be installed close to the side by side.
Signal output function for controlling external brake action.
Software setting operation mode, no need to connect the control line can be used for speed control.

Specification: small.
Impact resistance: 120W.
Resistance to impact resistance: 50.
The use of resistance to consume the motor regenerative energy, thereby reducing the time to slow down.
Alarm output terminal of braking resistor.
When the temperature relay of the braking resistor is activated, a circuit for cutting the main power supply of the frequency converter is formed OMRON 3G3JZ-AB015. Specification: three phase 400V 3G3JZ-AB015
Power: 2.2KW.
Maximum output voltage: three phase input voltage.
Rated voltage, frequency: three-phase power supply 380 ~ 50/60Hz, 480V.
Cooling: forced air cooling.
Weight: 1.9kg.
Open loop vector control mode of low speed and high torque, rich control function and convenient distribution management network function,
Set in one of the inverter --3G3MZ OMRON 3G3JZ-AB015.
3G3MZ series inverter for the application of frequency control and development.
Humanized design and advanced management technology, as well as OMRON a simple style of modeling, feature rich style,
Combined with the latest technical needs of users, so that it has a noble lineage and the most close to the market elements.
Covers the special features of the fan pump class, open loop vector function,
Built in noise filter and a variety of network bus,
3G3MZ will be your most economical and the most perfect choice OMRON 3G3JZ-AB015. Specification: three phase 400V.
Power: 11KW.
Maximum output voltage: three phase AC380 ~ 480V (input voltage correspondence) OMRON V/F controlled converter.
Rated voltage: three phase 480V ~ 50/60Hz AC380.
Weight: about 6kg.
In the inverter is equipped with the servo can play the same static torque with PG vector control function,
DeviceNet communication makes the application field more extensive OMRON V/F controlled converter.
The high functional specifications are concentrated in the compact.
Equipped with PG vector control.
Subsequent models of 3G3RV.
CV/VT selection function OMRON V/F controlled converter.
Rich online automatic adjustment function (self learning function).
CX-Drive software.
DeviceNet correspondence correspondence.
Muulti function input and output function 3G3JZ-AB015.
Colorful function.
Brake transistor built-in.
Protection function. Box protection class: plastic, IP00.
Terminal size: M4.
Line diameter: 5.5 square mm.
Weight: 0.8kg.
Used to reduce the noiise from the power cord to the frequency converter or from the frequency converter to the power line OMRON 3G3JZ-AB015.
Try to be close to the transducer for connection.
