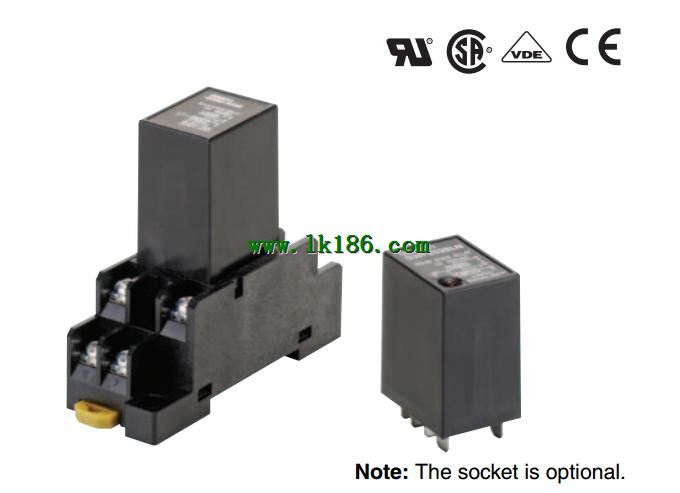

>> OMRON G3HD-X03S DC3-28 Solid state relay OMRON G3HD-X03S DC3-28
OMRON G3HD-X03S DC3-28 Solid state relay OMRON G3HD-X03S DC3-28
Brand:
OMRON
Name: Solid state relay
Model: G3HD-X03S DC3-28
Standard certification: No.
Insulation: photo coupler.
Zero trigger function: No.
Action indicator: No.
Applicable load of output: DC4 3A ~ 48V.
Input rated voltage: DC4 ~ 24V.
With the LY1, LY2 large power relay with the same shape of the G3H series, the new international standard certification (-VD type).
Achieved UL, CSA, EN (VDE certification) standard certification. (type -VD)
Socket terminal type of same size with LY (1 pole, 2 pole type).
A model with an action indicator to check the status of the input. (type N)
