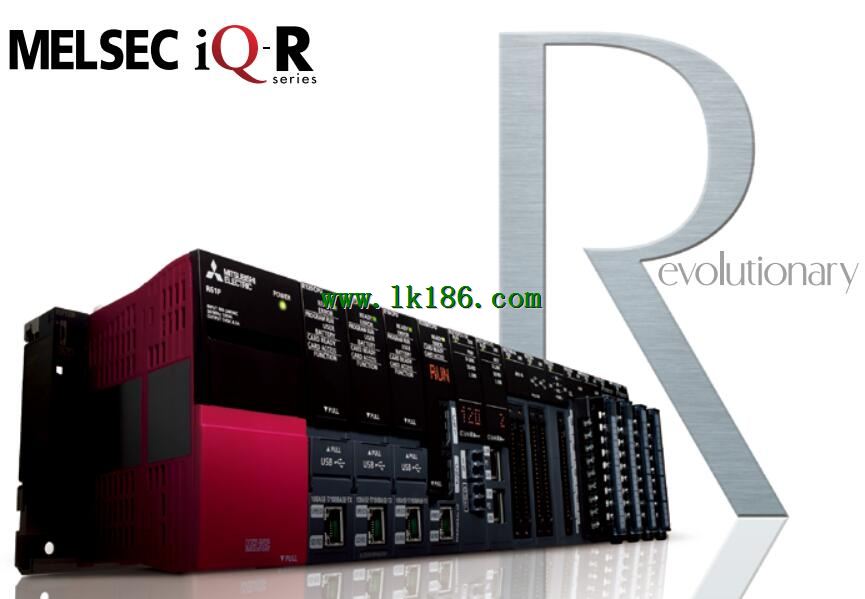

R120SFCPU Terminal module MITSUBISHI R120SFCPU

Operation control mode: stored procedure repeated operation.
Input / output points: 4096 points.
Program capacity: 1200K.
As the core of the programmable controller control system, programmable controller CPU module has been equipped with a variety of functions,
Support multiple controls. Program capacity from the 40K step to the 1200K step, to select the most suitable system size of the CPU module MITSUBISHI R120SFCPU R120SFCPU
And the CPU module can be directly connected to the industrial network, which can reduce the construction cost of the system.
Soft element / label area for easy processing
The extended SRAM card is installed on the programmable controller CPU module,
Soft element / label storage area with up to 5786K words MITSUBISHI R120SFCPU.
The expansion area is connected to the memory of the built-in CPU module,
The range of soft components / labels can be freely distributed.
Therefore, it can be easily programmed without taking into account the boundaries of each storage area.
In addition, can also use the SD memory card processing records data, database data, such as large capacity data. "The length of the cable: 3 meters MITSUBISHI R120SFCPU.
IQ-R MELSEC series of "inter module synchronization", refers to the module can be in accordance with the synchronization cycle between modules,
The function of the input and output time synchronization of the multiple input and output modules and the intelligent function modules of the synchronization object MITSUBISHI Terminal module.
Using this function, the system and equipment can be controlled with high precision MITSUBISHI Terminal module.
In addition, it is also available in the CC-LinkIE field network synchronous communication, so that the action time between the network nodes to maintain synchronization,
To avoid the error caused by the network transmission delay time, so as to build a stable system.
At the same time using these features, it can be easy to respond to the requirements of the high accuracy of the movement of the situation,
For example, the cutting and bending process of offset press, etc MITSUBISHI Terminal module. . "Operation control mode: stored procedure repeated operation.
Input / output points: 4096 points.
Program capacity: 80K.
Newly developed high speed parallel control execution engine and high speed system bus
In the large and complex production system, it is necessary to shorten the time of production.
IQ-R MELSEC series of new development of the basic operation processing speed (LD instructions) for the 0.98ns ultra high speed processing and control execution engine,
And the high speed system bus which can significantly improve the communication between the multi CPU and the data communication speed between the network module and the network module,
Helps to shorten the production cycle of the production system.
Program capacity of up to 1200K.
Multi CPU system for high precision motion control.
The built-in CPU module support 2 Gigabit Network port.
Database functions to facilitate data managgement R120SFCPU.
Extended SRAM card with built-in security function.
Can be carried out a variety of motion control (position, speed, torque, advanced synchronous control, etc.).
In line with the international safety standards (13849-1 PPL e ISO, IEC 61508 SIL 3) security CPU MITSUBISHI R120SFCPU.
The most suitable for C/C++ language programming from the computer / computer environment for transplantation.
